In the StdHMI the program looks like this:

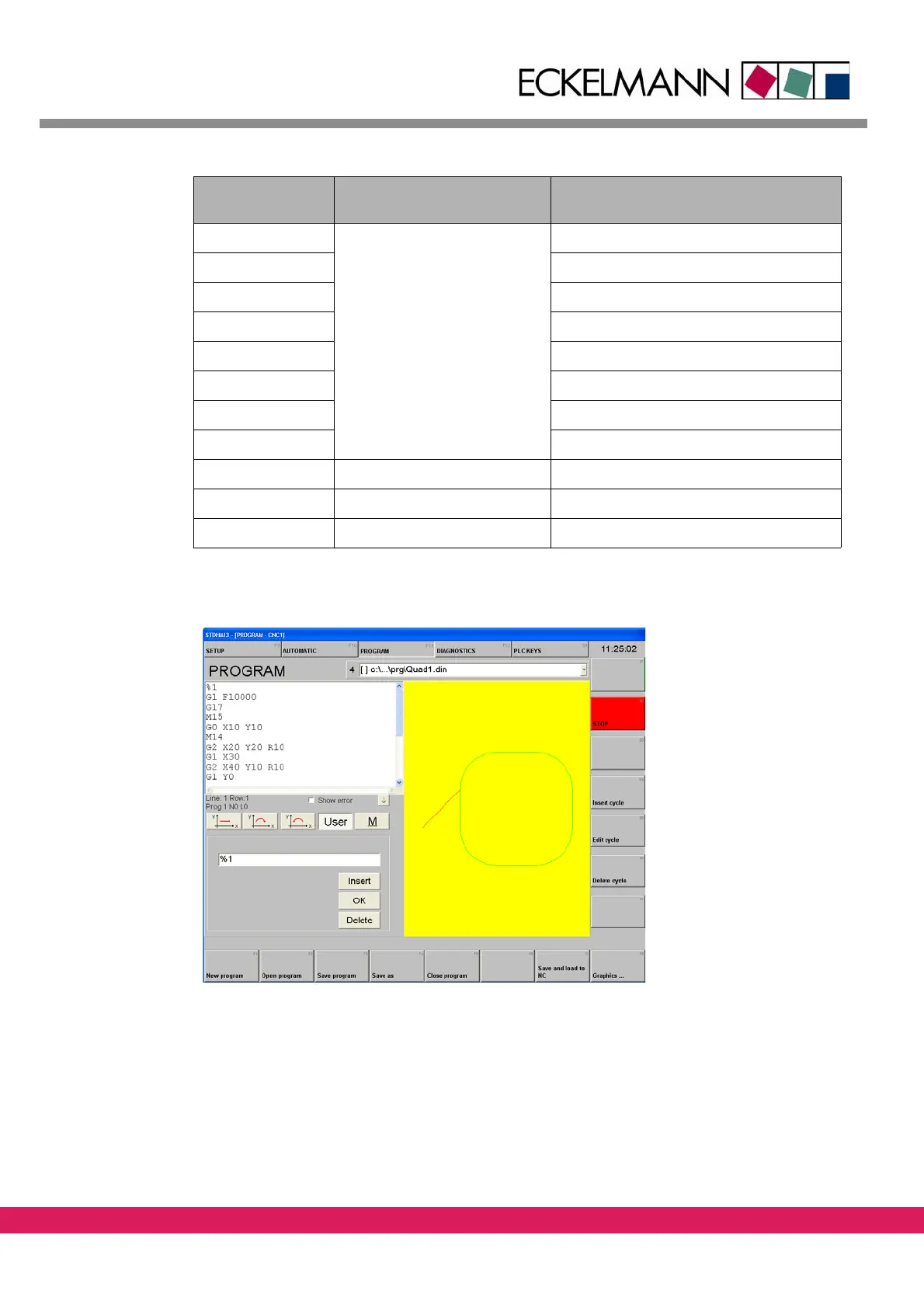

Abbildung 42:
Figure 42: Program with M-functions shown in the StdHMI
Save the program by means of „Save program“
Now the program can be transferred to the controller and started.
G2 X20 Y20 R10
G1 X30
G2 X40 Y10 R10
G1 Y0
G2 X30 Y-10 R10
G1 X20
G2 X10 Y0 R10
G1 Y10
M15 Lift tool
G0 X0 Y0
M30
Input in the left
input field
Meaning Graphical display
Table 41: program example with M-functions
