Startup of VS 300

Doku-Version 2.05 - Firmware 2.10 - 15. September 2017

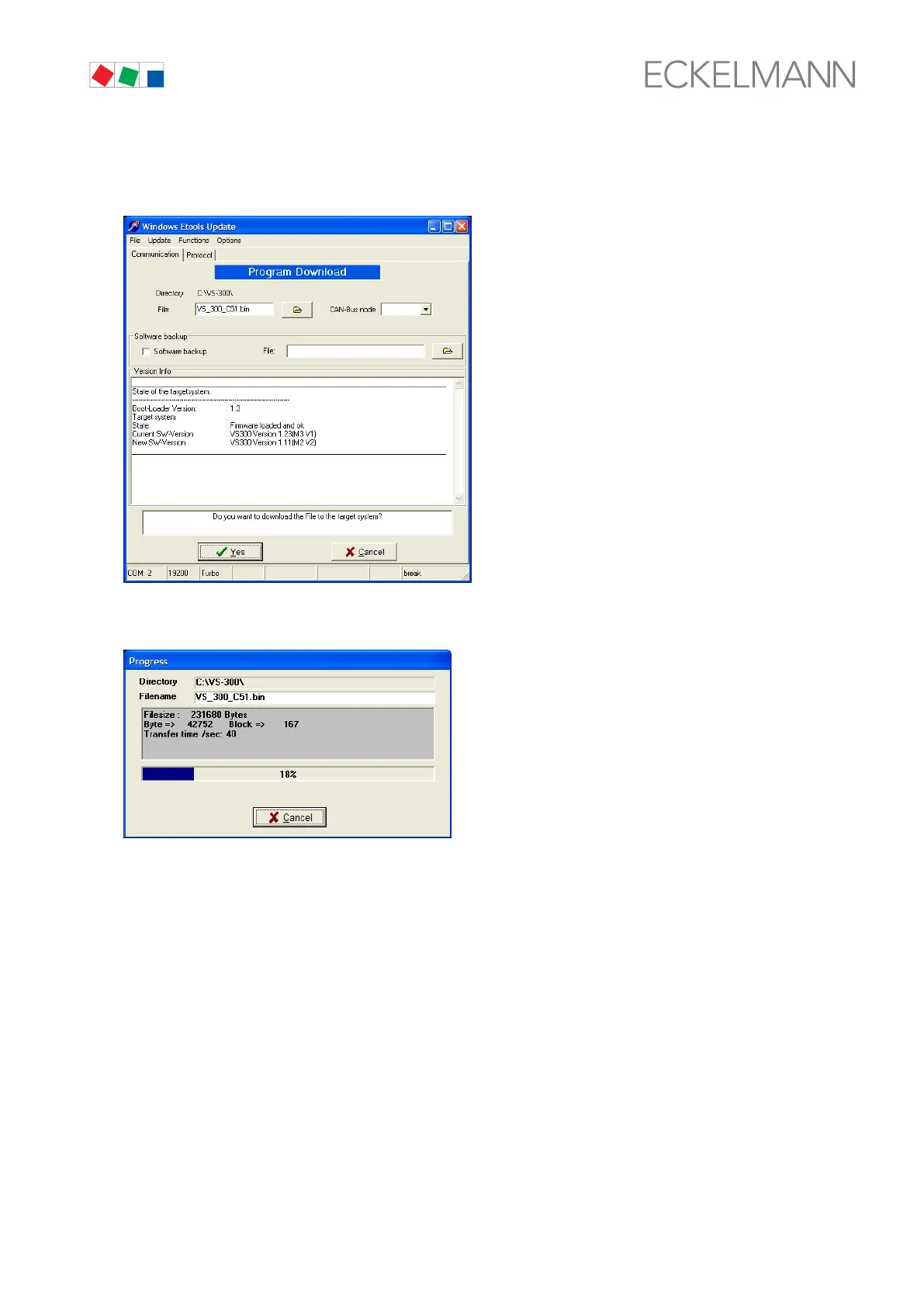

11. The following screen shows the firmware version contained in the controller and which firmware is to be

updated. Click on Yes to start downloading.

12. It takes about 5 minutes to download the current firmware to the VS 300.
