STP-iXA3306 Series Turbomolecular Pump

MT-82E-001-H

Page 101

SERIAL C

OMMUNICATION PROTOCO

Communication cycle start

Succeeded?

Decode process

Error process

Address selection:

First TMP

RS485 multipoint

connection?

Address selection:

Next TMP

Communication cycle end

Command sending process

Succeeded?

Answer receiving process

Yes

This procedure is not necessary

if TMP connection number = 1.

Yes

RS485 multipoint

connection?

Address check:

Last TMP?

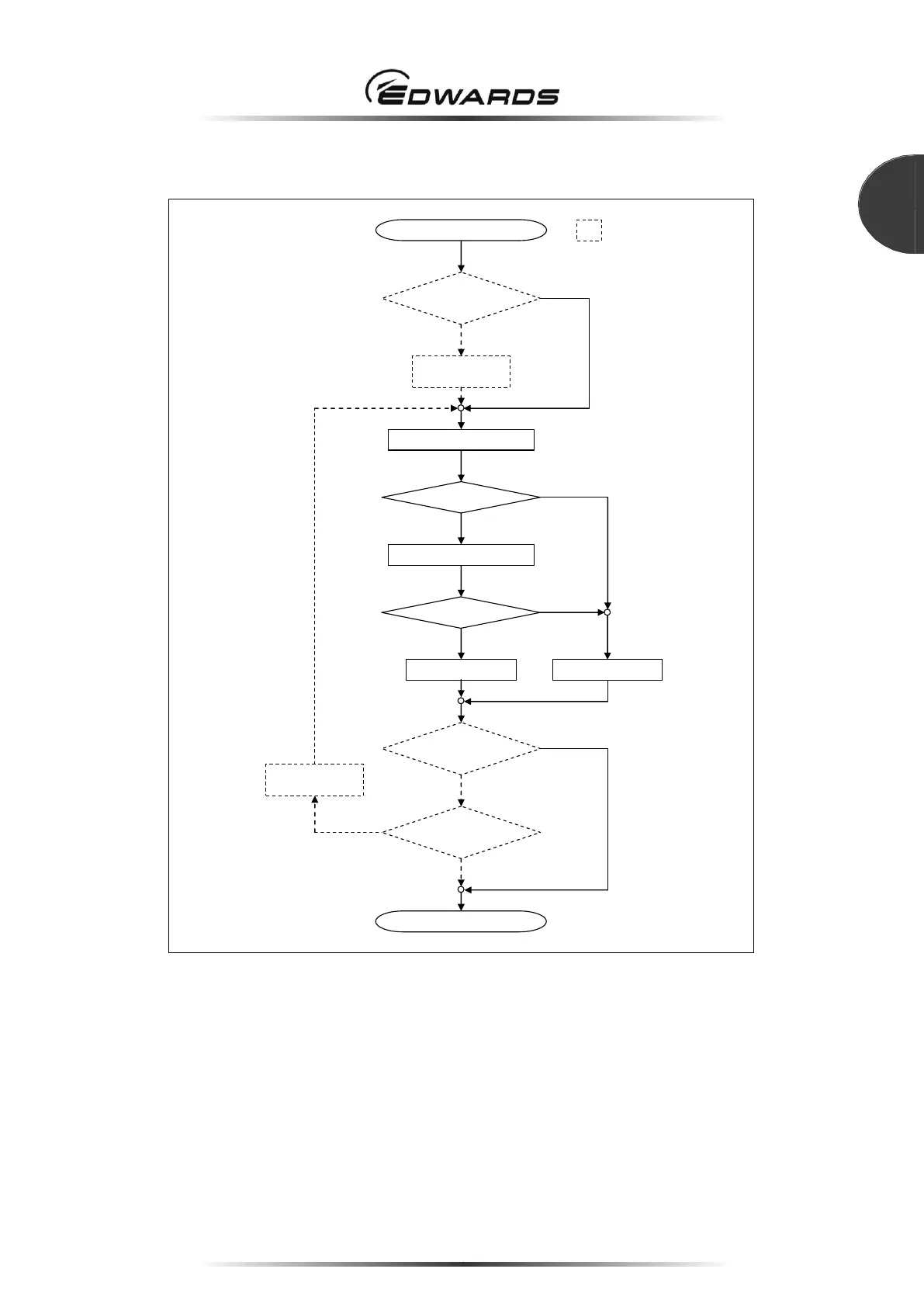

Figure 53 - Example of communication cycle process
