STP-iXA3306 Series Turbomolecular Pump

MT-82E-001-H

Page 39

INSTALLATION

Vacuum equipment

ISO250F

ISO320F

VG250

VG300/VG350

Inlet port flange

15 mm

20 mm

15 mm

18 mm

Washer

2 mm

2.5 mm

Torque reduction mechanism

35 mm

50 mm

Bolt insert position

22 mm

24 mm

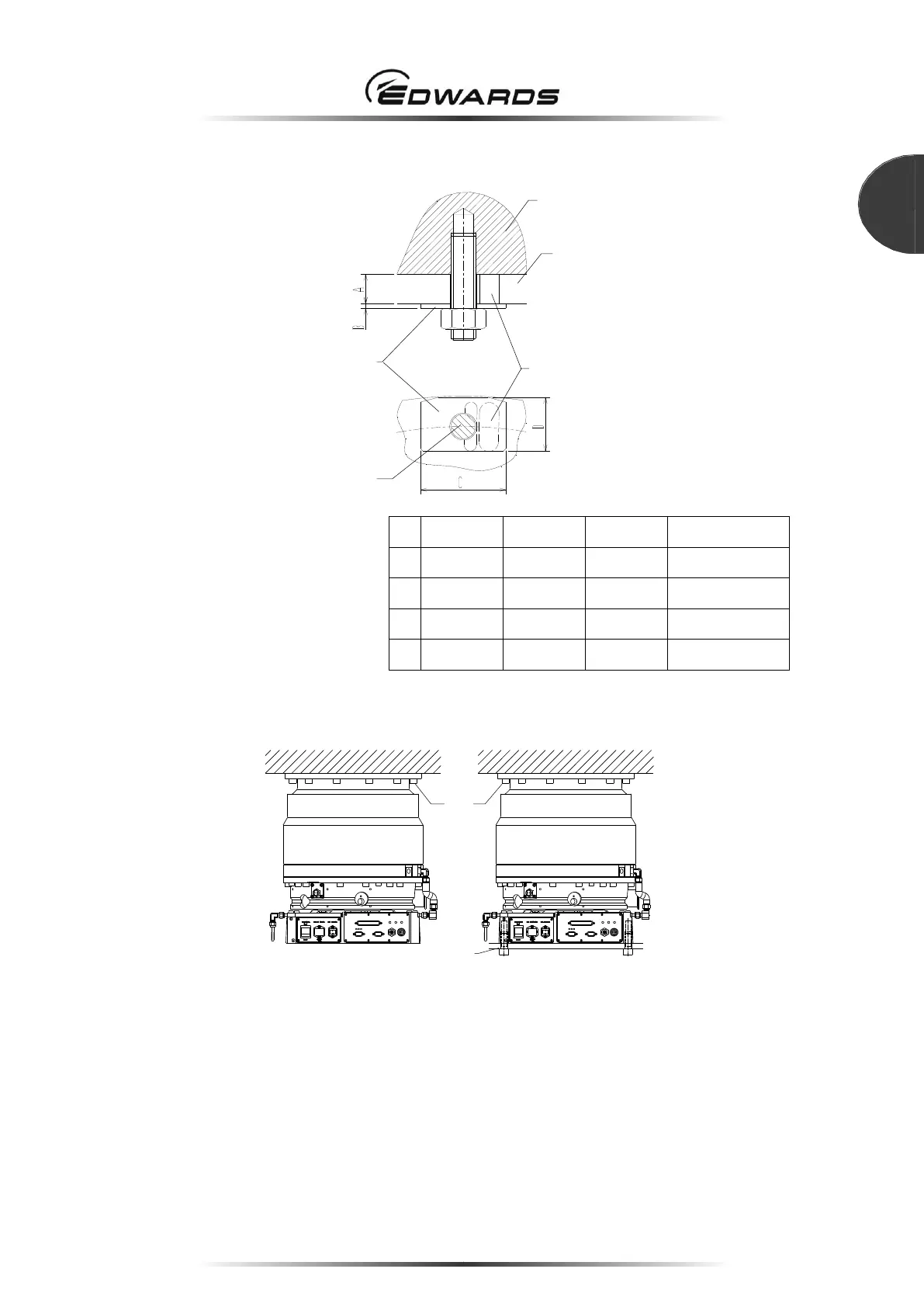

Figure 21 - Bolt position for securing the flange

(i) When the base is

not secured

(ii) When the base is secured

Recommended fitting bolt for flange

Secure the base (legs)

Figure 22 - Methods of securing the STP pump
