STP-iXA3306 Series Turbomolecular Pump
MT-82E-001-H
Page 20
TECHNICAL DATA
PAG
E
20
2
2.6 Label affixing positions
Refer to Section 1.6, "Labels" for the details of the labels 1 to 5.
1
STP pump installation warning label
2
Hot surface warning label
3
Heavy product caution label
4
High voltage device caution label
5
Rotational direction instruction label
6
Name plate
7
Company logo
8
WATER IN label
9
WATER OUT label

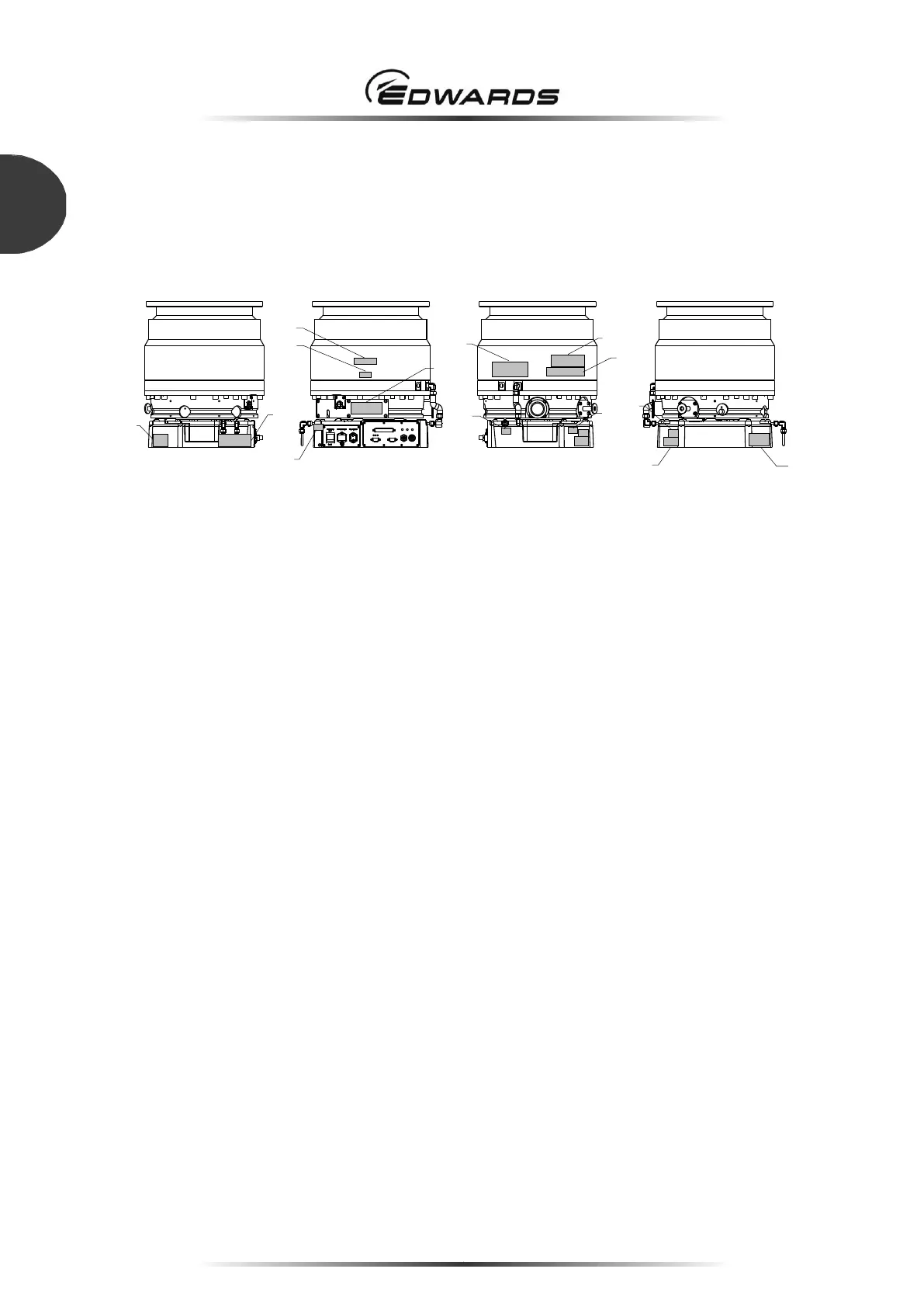

Figure 8 - Label affixing positions
1
7
3
5
2
2
6
6
2
4
8
9
2
7
