STP-iXA3306 Series Turbomolecular Pump

MT-82E-001-H

Page 42

INSTALLATION

Control unit side

Power side (Primary)

Black 1

M4-bolt (fixing screw)

Black 2

Crimp-type terminal (M4)

Yellow/Green

Cover

Clearance min. 1.5 mm

Terminal block

Use material flammability: UL 94V-0

Use the UL-recognized terminal block satisfying with the following conditions;

a) Clearance (between each terminal): 1.5 mm or more

b) Material flammability: UL 94V-0

c) The installation category Ⅱ

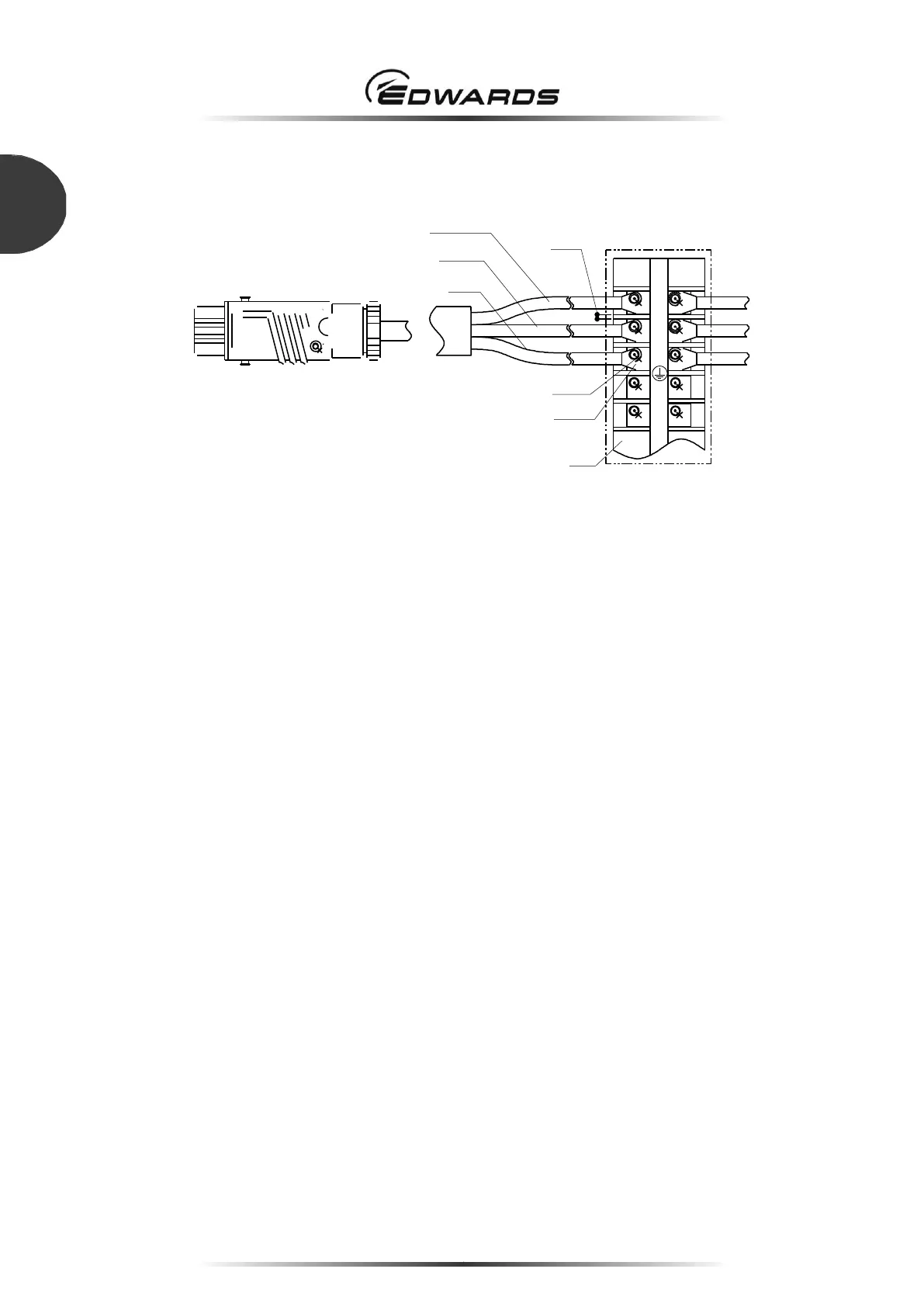

Figure 25 - Connecting method of the power cable
