STP-iXA3306 Series Turbomolecular Pump

MT-82E-001-H

Page 76

OPERATION

Description

Pins for optional signal output.

In state of the second speed option is "ENABLE", and second

speed is selected, the pins between (7)-(26) are closed and the

pins between (7)-(26) are opened.

Table 26 - X2 REMOTE output signal pins (continued)

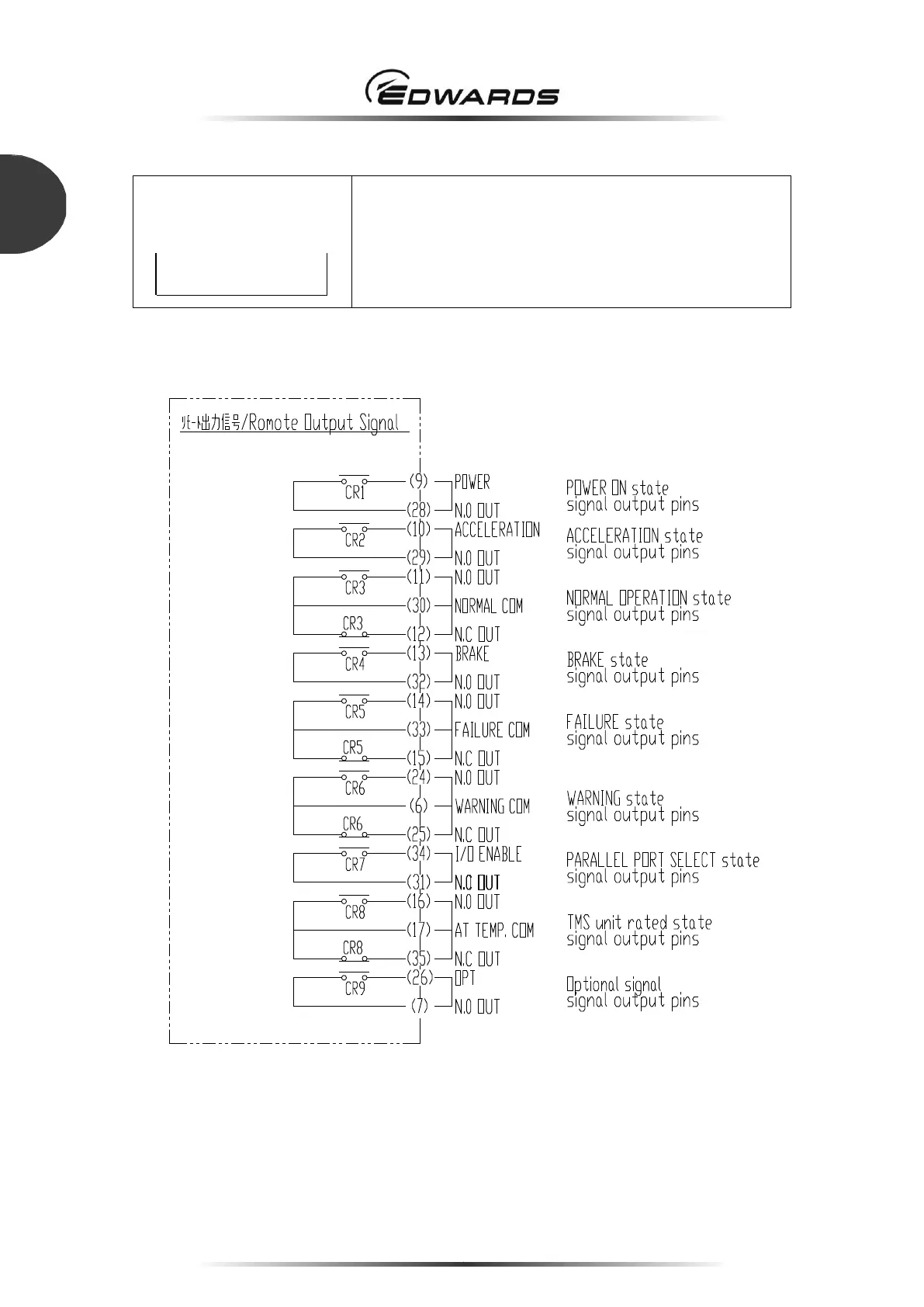

Figure 39 - X2 REMOTE output signal pins

(7) (26)

OPT

N.O OUT
