Edwards STP-iXA3306C User Manual

STP-iXA3306 Series Turbomolecular Pump
MT-82E-001-H
Page 7
INTRODUCTION
1

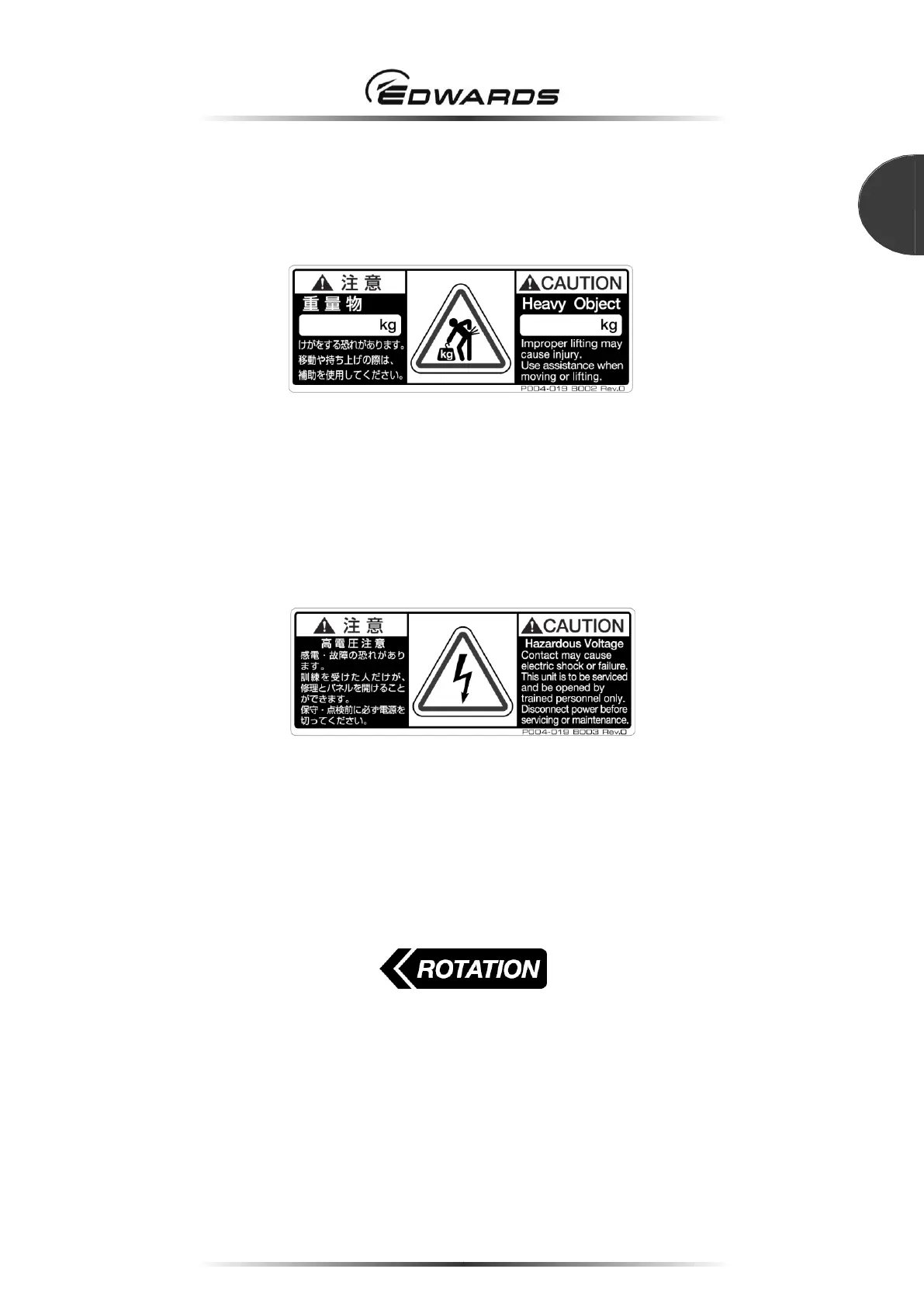

3. Heavy product caution label
This label is affixed to the product with a weight of 18 kg or more. Follow the precautions of
Section 3.2, "Unpacking" so as not to cause any accident during handling.
Figure 3 - Heavy product caution label
4. High voltage device caution label
The pump and control unit are equipped with a high voltage device. This label warns operators
to pay attention to the high voltage device at the maintenance and inspection.
Figure 4 - High voltage device caution label
5. Rotational direction instruction label
This label describes the rotational direction of the STP pump. The STP pump rotates in this
direction.
Figure 5 - Rotation instruction label
