167

Chapter3 Handling

Adjusting Label Detector for Circle Die-cut Labels (Example)

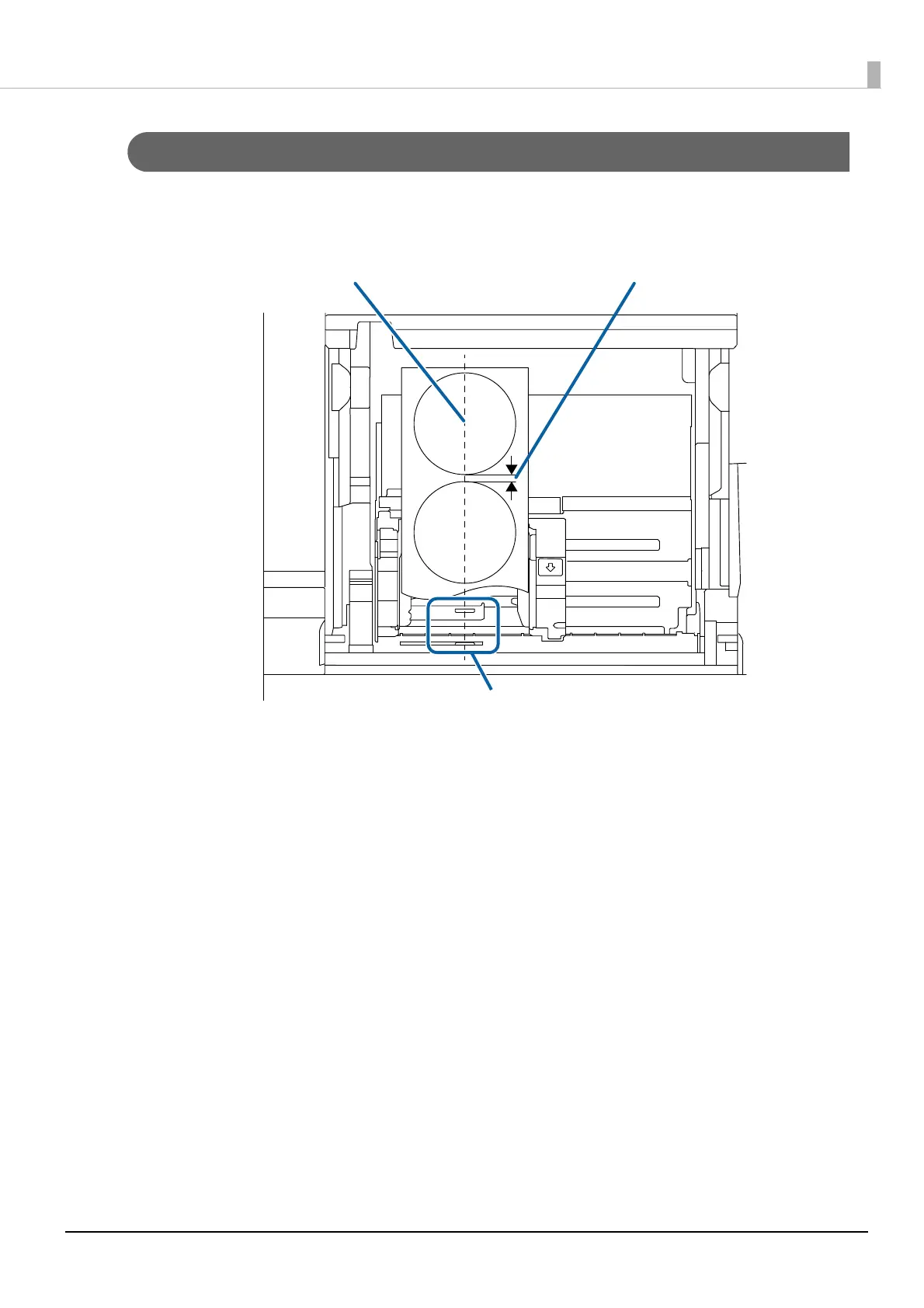

Align the center of the circle die-cut label, which is shown by dotted line in the figure, with the

adjustment tabs.

Center of Circle Gap between Labels

Position of the detector
