Position of Paper Feeder and Paper Rewinder

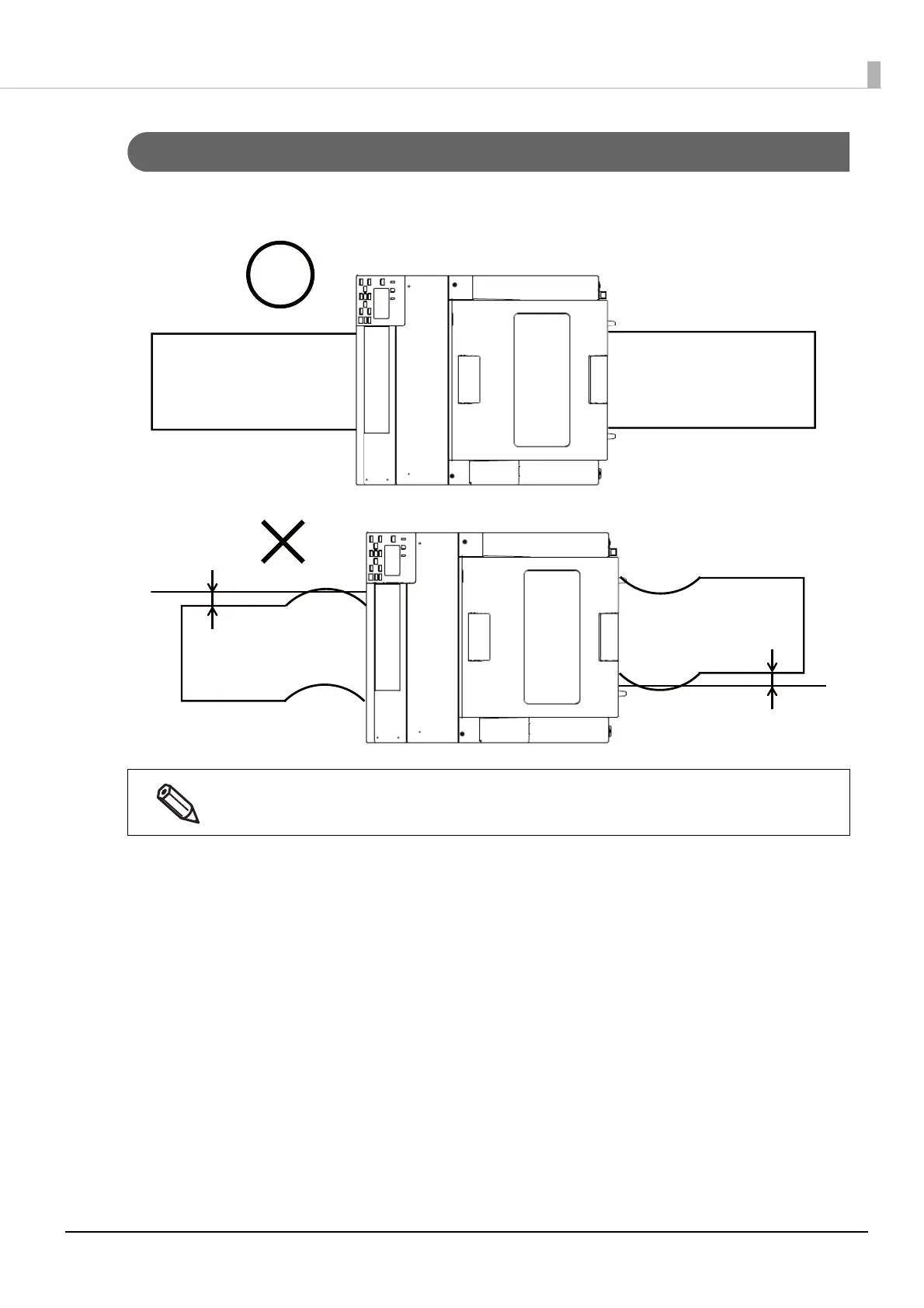

Place a paper feeder and paper rewinder so that paper is fed or ejected straight to/from the printer.

If you find that paper is skewed before it reaches the printer or rewinder, adjust the position of the paper

feeder or the paper rewinder.
