Chapter1 Product Overview

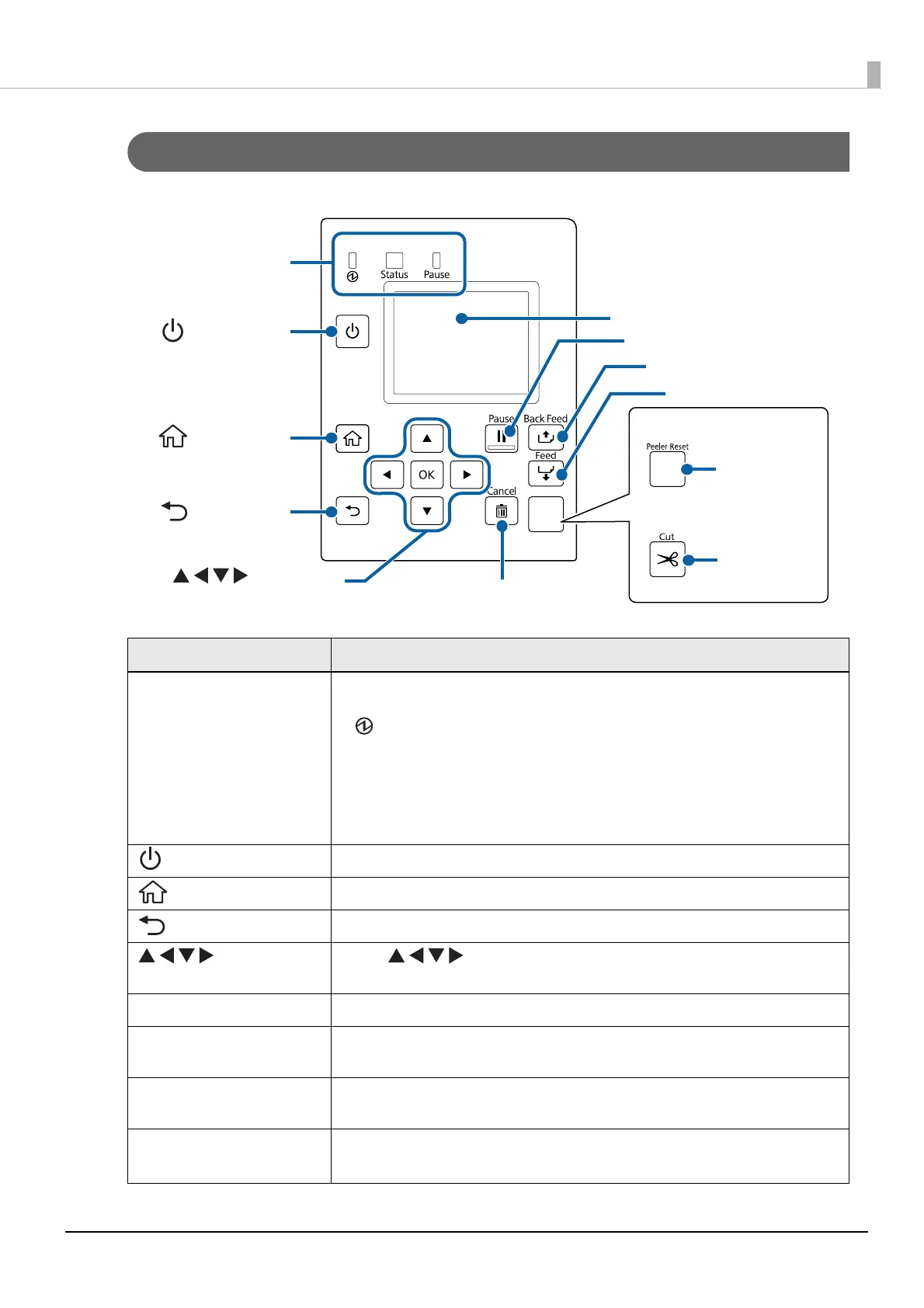

Operation Panel
Name Description
LED The status of the printer can be checked from the flashing of the LEDs. This allows you
to know the cause of an error and how to resolve the problem.
• (power) LED
Stays on while the printer is on. Flashes during printing or charging ink.
• Status LED
Stays on or flashes while an error or problem is occurring.
• Pause LED
Stays on or flashes while the printer is paused.
(power) button Turns on/off the printer.
(home) button Displays the Home screen.
(back) button Use to return to the previous screen.
(select) button,
OK button
Use the keys to select a menu item, and then press the OK button to acti-
vate the selected menu or setting.
Cancel button Use this to return the printer to standby mode.
Cut button
(Auto cutter model only)
Use to cut paper. The paper cannot be cut twice at the same position.
Peeler Reset button
(Peeler model only)
Use to cancel pause state. Press this button if printing of the next data does not start
even after removing printed labels. For details, refer to
"Cannot Print" on page 191.
Feed button Press this briefly to feed paper by one page.
Hold down to feed paper continuously.
LED
Peeler model
Auto cutter model
Screen
Cancel button
Pause button
Back Feed button
Feed button
Peeler Reset
button
Cut button
(power) button
(home) button
(back) button
(select) button,
OK button
