Chapter1 Product Overview
Inside
Name Description
Movable edge guide Supports paper at the paper width position while the paper is fed into the printer.
Squeeze the blue lever to move the edge guide. Adjust them to match the paper
width.
Label detector You can adjust the position of the label detectors. The adjustment is necessary before
printing on odd-shaped labels such as circle or oval. (
"Adjusting Label Detector" on
page 166
)
Release lever Use this lever when removing a jammed paper. By moving the lever up, the paper pres-
sure rollers are unlocked and you can remove paper jammed inside the front cover.
Edge guide Supports paper while the paper is fed into the printer. When loading paper, load the
paper along this guide.
Paper guide unit Move this unit when cleaning the paper feed roller. If you pull the blue lever, the entire
unit moves, and you can check the paper feed roller.

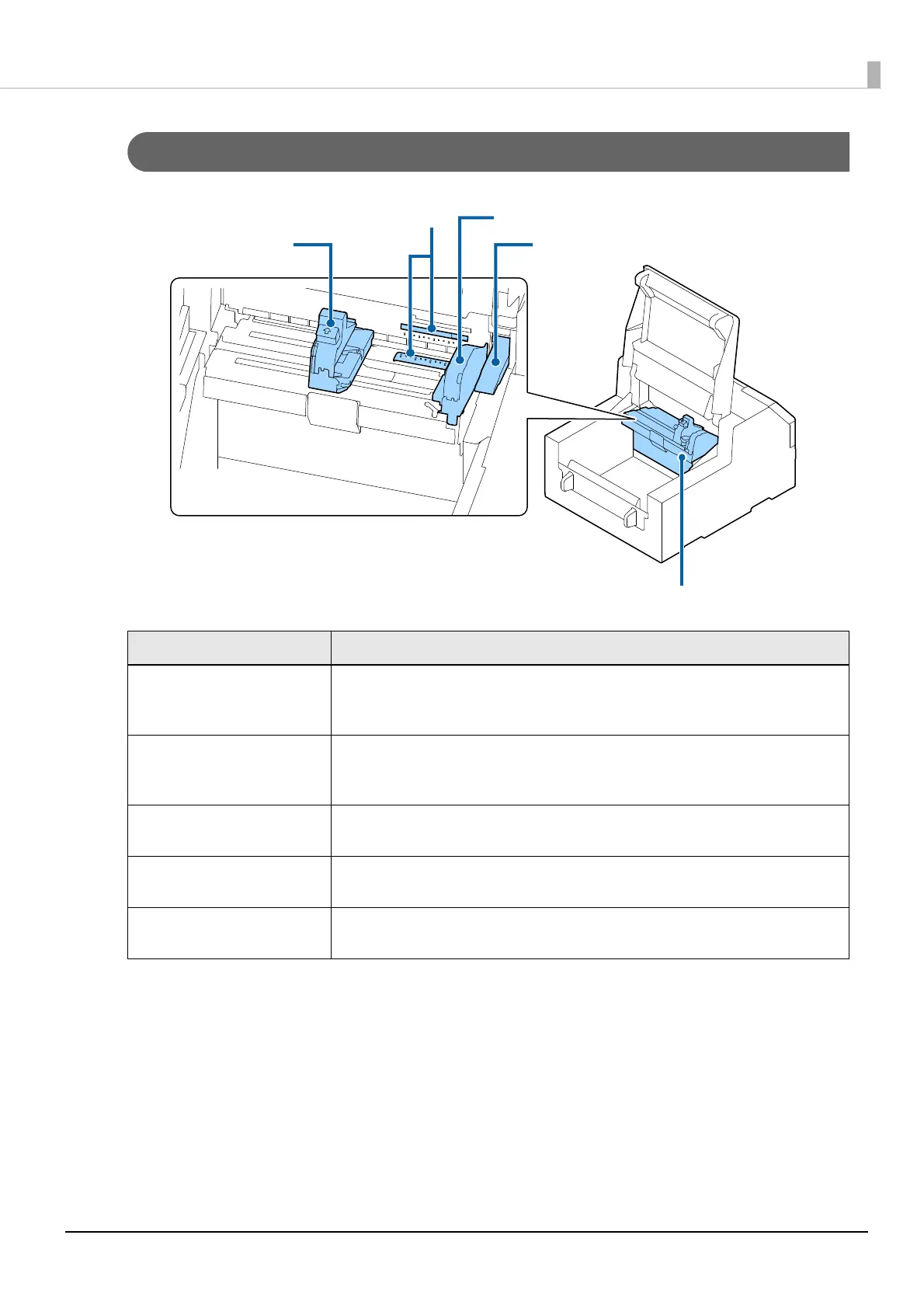

Movable edge guide
Label detector
Edge guide
Release lever
Paper guide unit
