Chapter2 Setup

How to Load Paper (Auto Cutter Model - Supply from Outside)

Turn on the printer, and then check that [Rear Feed] is selected as the [Media Source]

setting on the operation panel.

("Operation Panel Settings" on page 145)

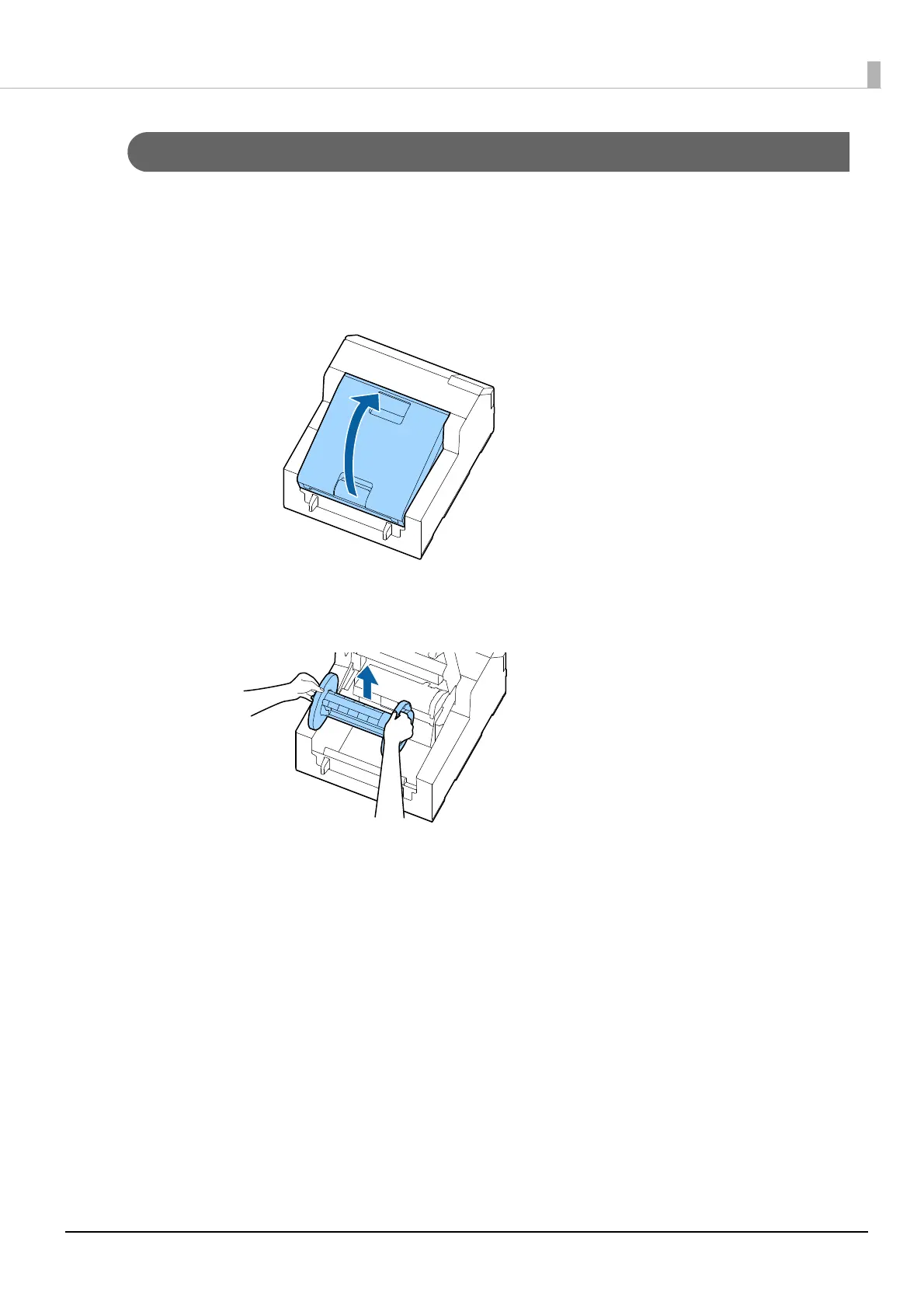

Open the paper cover.

Remove the spindle, if present.

As shown in the figure, hold the spindle and flange with both hands, and remove them.
