Chapter1 Product Overview
Part Names and Functions
This section describes the main operation parts.

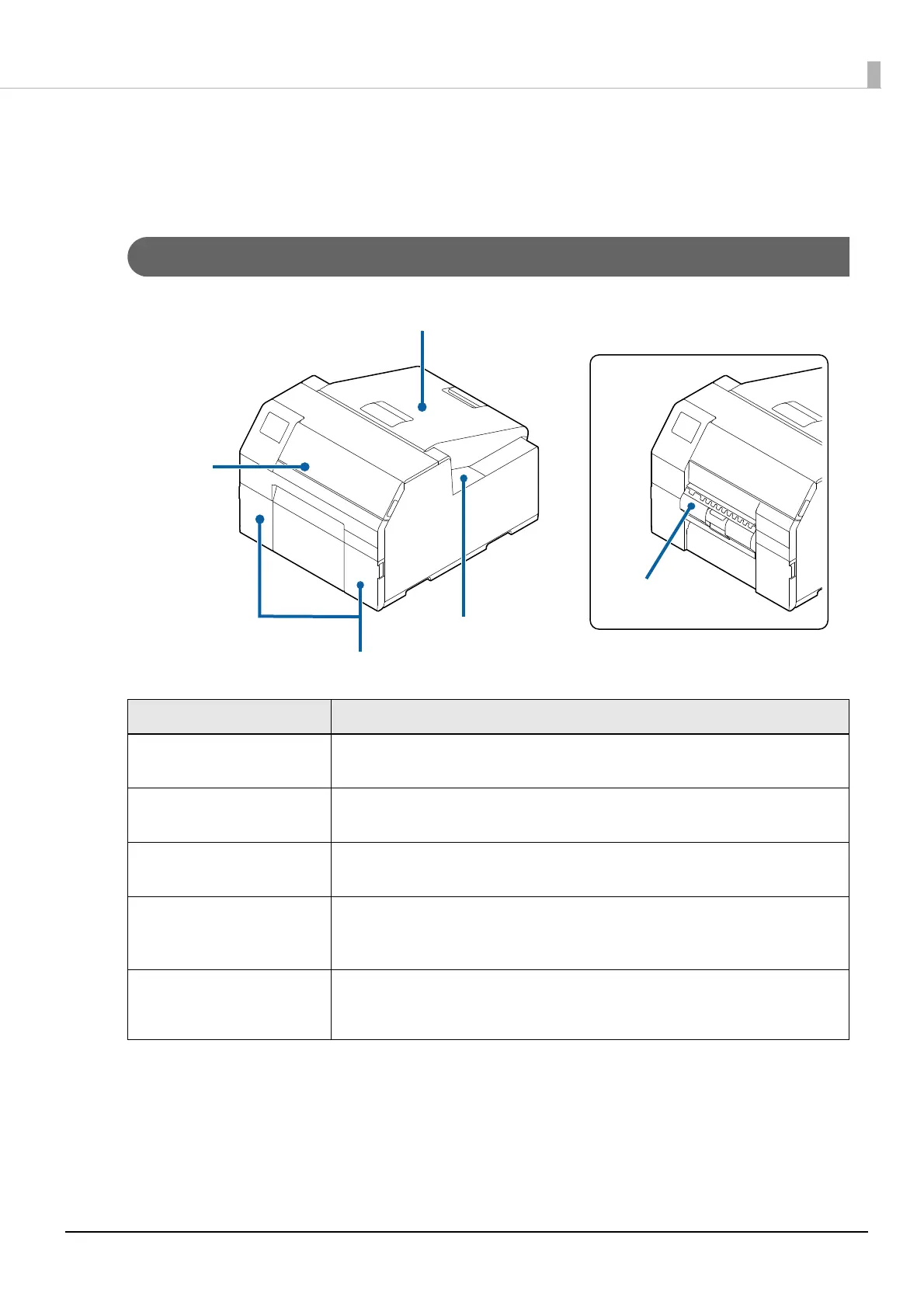

Front
Name Description
Front cover Open this cover to remove paper if it is jammed.
(
"Paper is jammed" on page 197)
Ink cartridge cover Open this cover to install/replace the ink cartridge.
(
"Replacing the Ink Cartridges" on page 37)
Maintenance box cover Open this cover to install/replace the maintenance box.
(
"Replacing the Maintenance Box" on page 39)
Paper cover Open this cover to load or replace paper. How to open the paper cover differs depend-
ing on whether the paper is to be supplied from the inside or the outside.
(
"Opening the Paper Cover" on page 164)
Peeler cover
(peeler model only)
Open this cover to load paper. By passing a backing paper through the peeler, labels
are printed being peeled from the backing paper. A detector for determining if a
peeled label is remaining in the paper ejection slot is provided.
Paper cover
Front cover
Ink cartridge cover
Maintenance box cover
Peeler cover
Peeler model
