Appendix

Paper Tension

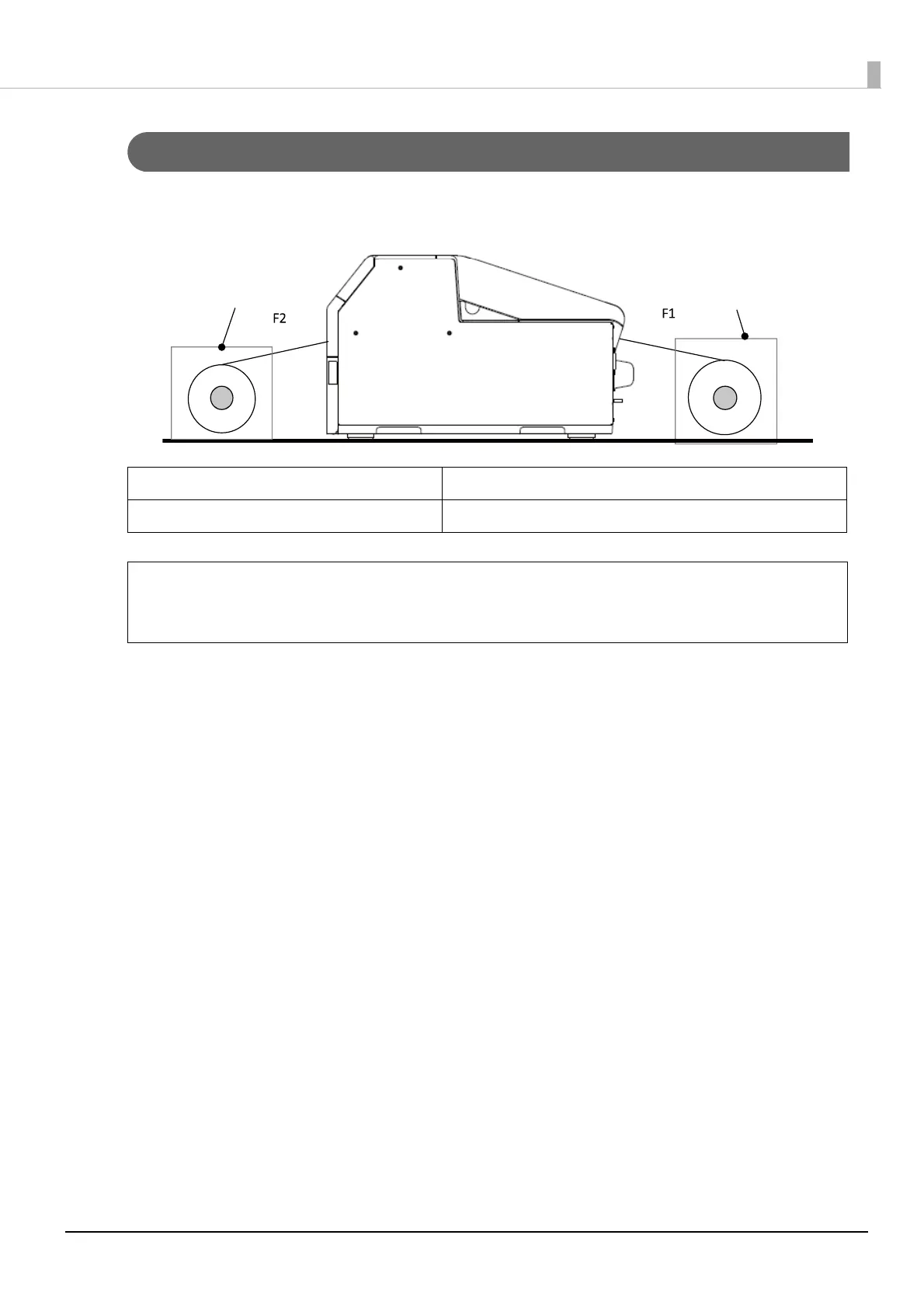

The allowable values of tension applied to paper between the printer and a paper feeder or rewinder are as fol-

lows.

Paper tension at the feeder side (F1) 2N or less

Paper tension at the rewinder side (F2) 2N or less

IMPORTANT

If the paper tension varies too much, the paper may not be fed accurately.
