Chapter2 Setup

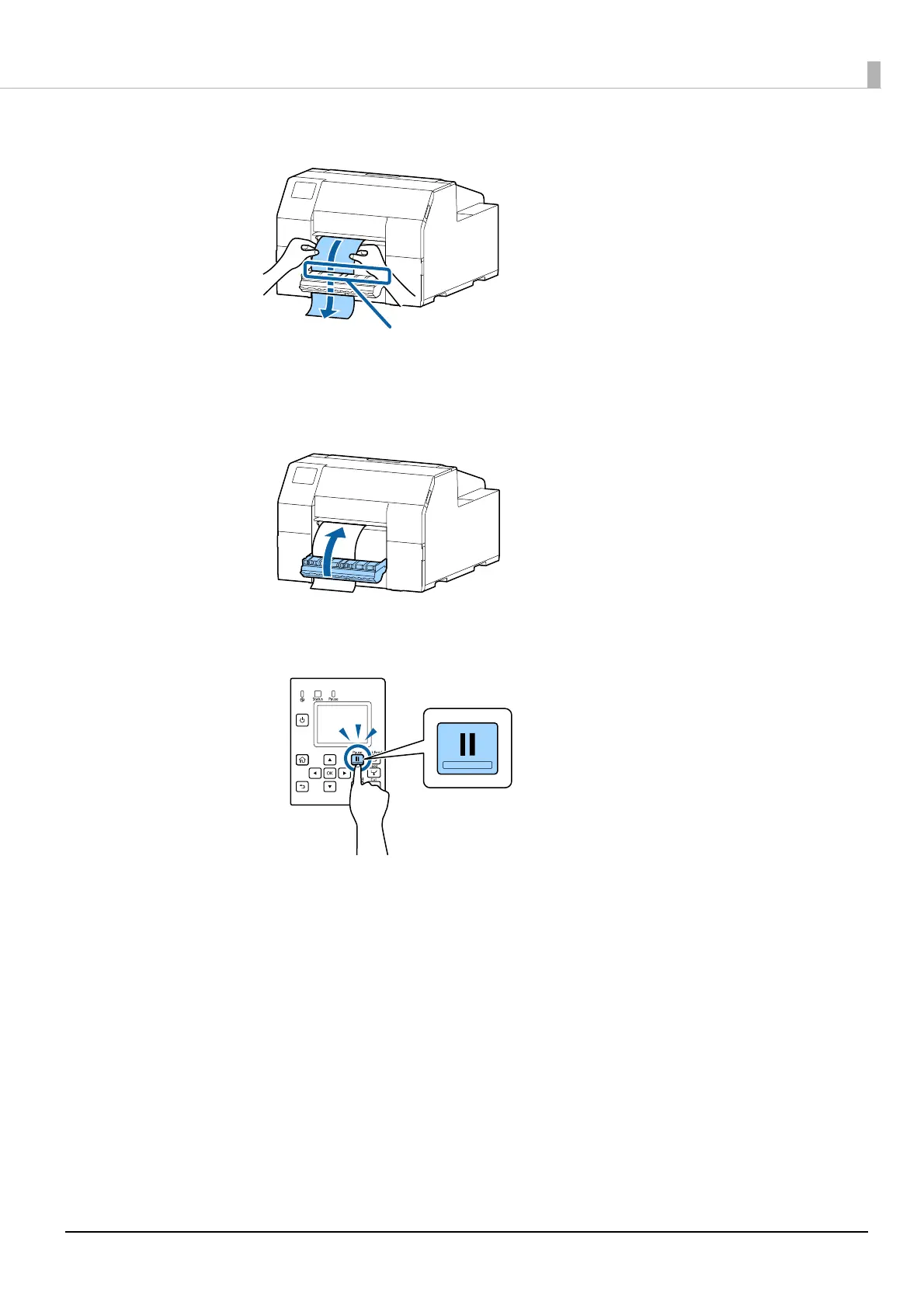

Pass the paper through the peeler slot.

Close the peeler cover.

If the paper is loose, pull the leading edge of paper to remove the looseness and then close the

peeler cover.

Press the [Pause] button.

Loading paper (peeler model - supply from inside) is now completed.

Peeler slot
