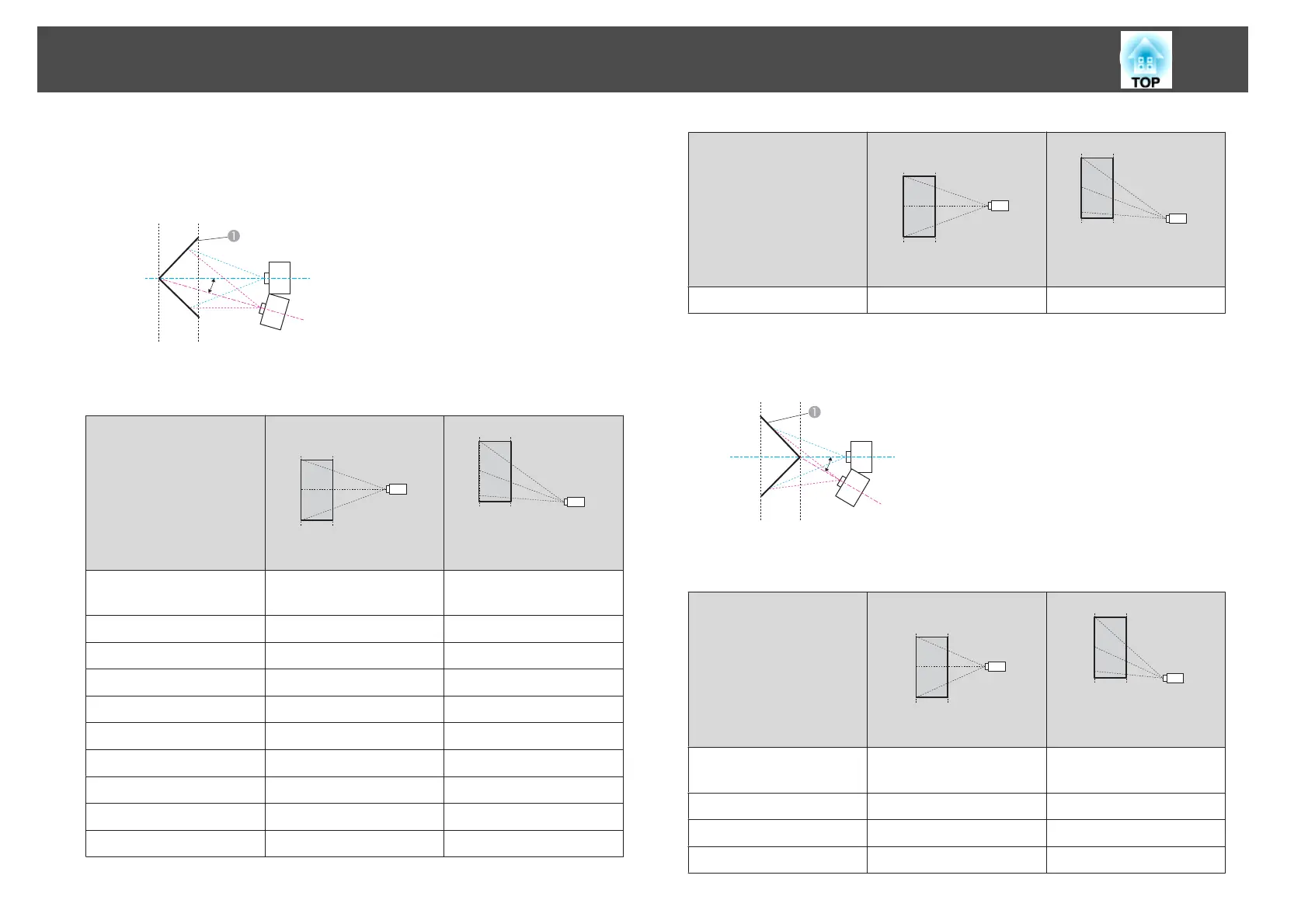

Concave horizontal corner correction (correction to bilateral symmetry by
using corners as the center line)
Ș
A
Screen
α Angle of possible projector
motion
Top view
Lens type Vertical lens shift:
Home position
Side view
Vertical lens shift: Top
Side view
ELPLM15/ELPLM09/
ELPLS04
31˚ 22˚
ELPLX02/ELPLX02W - -
ELPLU03 26˚ 21˚
ELPLU04/ELPLU02 25˚ 6˚
ELPLR04 26˚ -
ELPLW05 27˚ 22˚
ELPLW06/ELPLW04 31˚ 18˚
ELPLW08 29˚ 12˚
ELPLM10/ELPLM06 30˚ 28˚
ELPLM11/ELPLM07 29˚ 29˚
Lens type Vertical lens shift:
Home position
Side view
Vertical lens shift: Top
Side view
ELPLL08/ELPLL07 29˚ 29˚
Convex horizontal corner correction (correction to bilateral symmetry by
using corners as the center line)
Ș
A
Screen
α Angle of possible projector
motion
Top view
Lens type Vertical lens shift:
Home position
Side view
Vertical lens shift: Top
Side view
ELPLM15/ELPLM09/
ELPLS04
15˚ 15˚
ELPLX02/ELPLX02W - -
ELPLU03 1˚ 1˚
ELPLU04/ELPLU02 - -
Adjustment Range for Projected Images
273
