ETAS ES910.3-A - Interfaces

ES910.3-A - User’s Guide 19
ETAS Hardware Description
3.3 Interfaces
3.3.1 Front Panel
The following interfaces are on the front panel of the ES910.3-A:
• Extension slot (e.g. for ES920.1 FlexRay Module)
• CAN1/LIN1 (1 x CAN, 1 x LIN)
• CAN2/LIN2 (1 x CAN, 1 x LIN)
• ETK (1 x ETK)

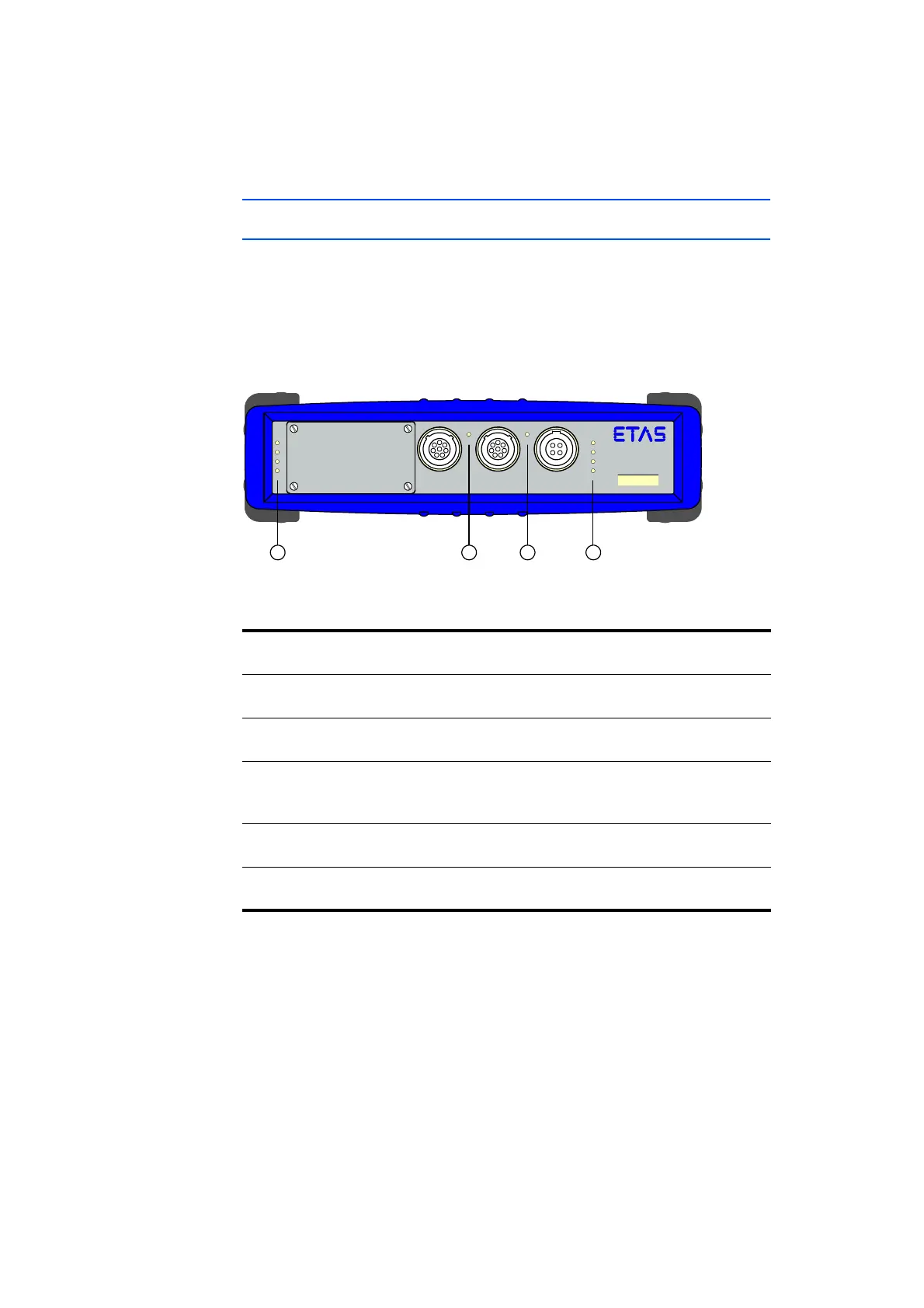

Fig. 3-2 ES910.3-A Front Panel
LEDs are assigned to the module and to the interfaces of the module:
No. in Fig. 3-2
(Name of LED)
Assignment Display Function
1
(1, 2)
Module Operational state of the module
(see chapter 3.4.2 on page 21)
1
(R, H)
Configurable Customized configuration
(see chapter 3.4.2 on page 21)
2
(T)
CAN1/LIN1,
CAN2/LIN2
Communication at the interfaces CAN1,
LIN1, CAN2 and LIN2
(see chapter 3.4.4 on page 23)
3
(T)
ETK Communication at the ETK interface (see
chapter 3.4.4 on page 23)
4
(ON, TX, ER, °C)
Module Functional state of the module
(see chapter 3.4.3 on page 22)
CA N 1
LIN1
CA N2
LIN2
ETK
TT
ON
TX
ER
°C
1
2
R
H
ES910.3
A
1 2 3 4
