ETAS ES910.3-A - Fig. 5-7 ETK Bypass System with ES910.3-A

ES910.3-A - User’s Guide 49
ETAS Getting Started
XETK Bypass System via ECU Interface and CAN/LIN Interfaces
Here, the ES910.3-A runs rapid prototyping tasks and calculates the functions.
The ES910.3-A has access for bypass applications via the CAN interfaces (High-
Speed or Low-Speed), the LIN interfaces and the ECU interface. Measuring and
calibration applications are also possible via the ECU interface. The ECU interface
of the ES910.3-A must be connected directly to the XETK.

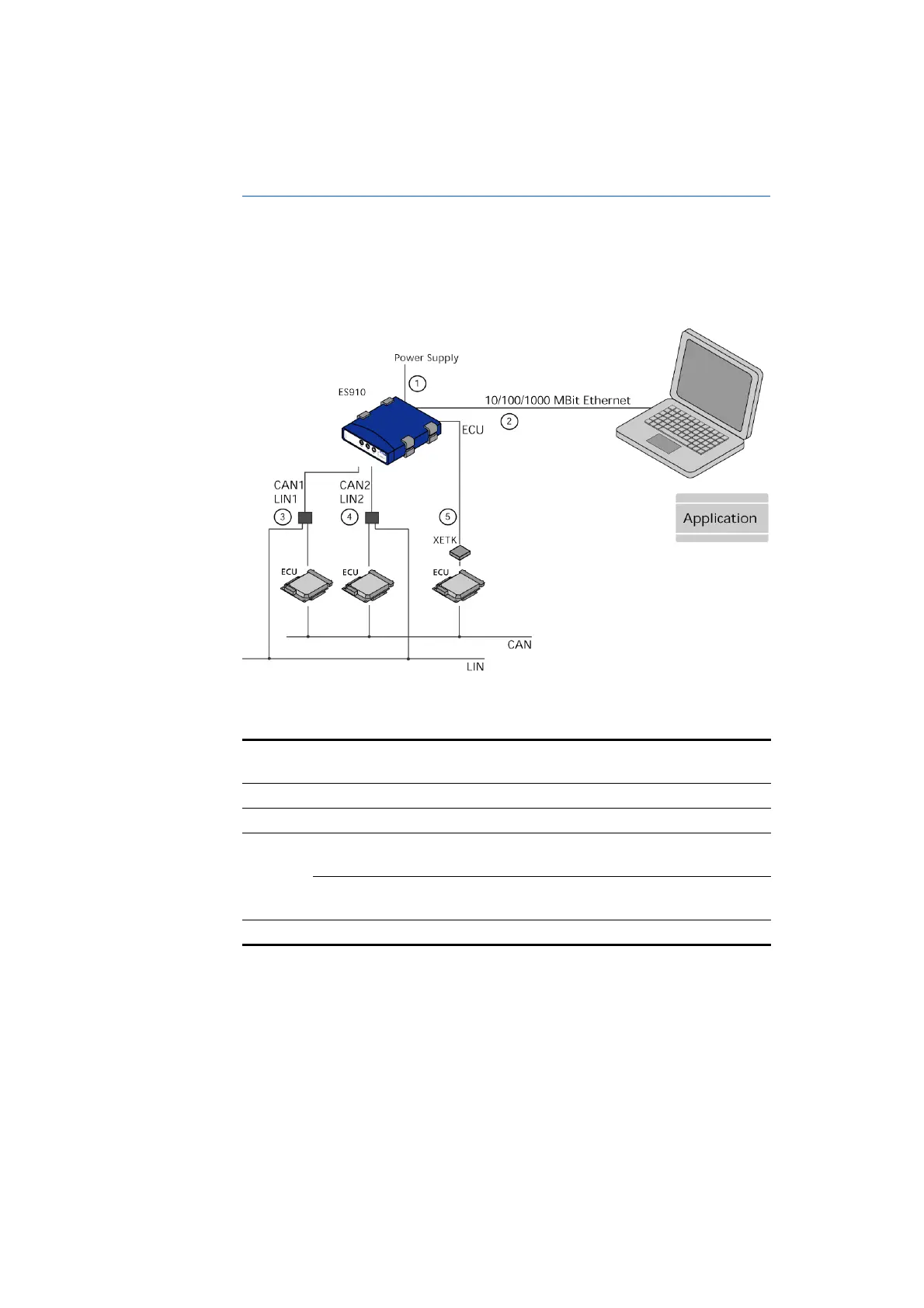

Fig. 5-7 ETK Bypass System with ES910.3-A
Cable in
Fig. 5-7
Function Short Name
1 Power supply cable CBP120, CBP1205
2 PC connecting cable CBE200
3, 4 CAN/LIN connecting cable
(CAN/LIN combined)
CBCFI100
CAN connecting cable
(CAN only)
CBAC130, CBAC140, CBAC150,
CBCX130
5 XETK connecting cable CBE230
