ETAS ES910.3-A - IO Interface (IO); Fig. 7-7 IO Interface (IO)

ES910.3-A - User’s Guide 92
ETAS Technical Data
7.8.6 IO Interface (IO)

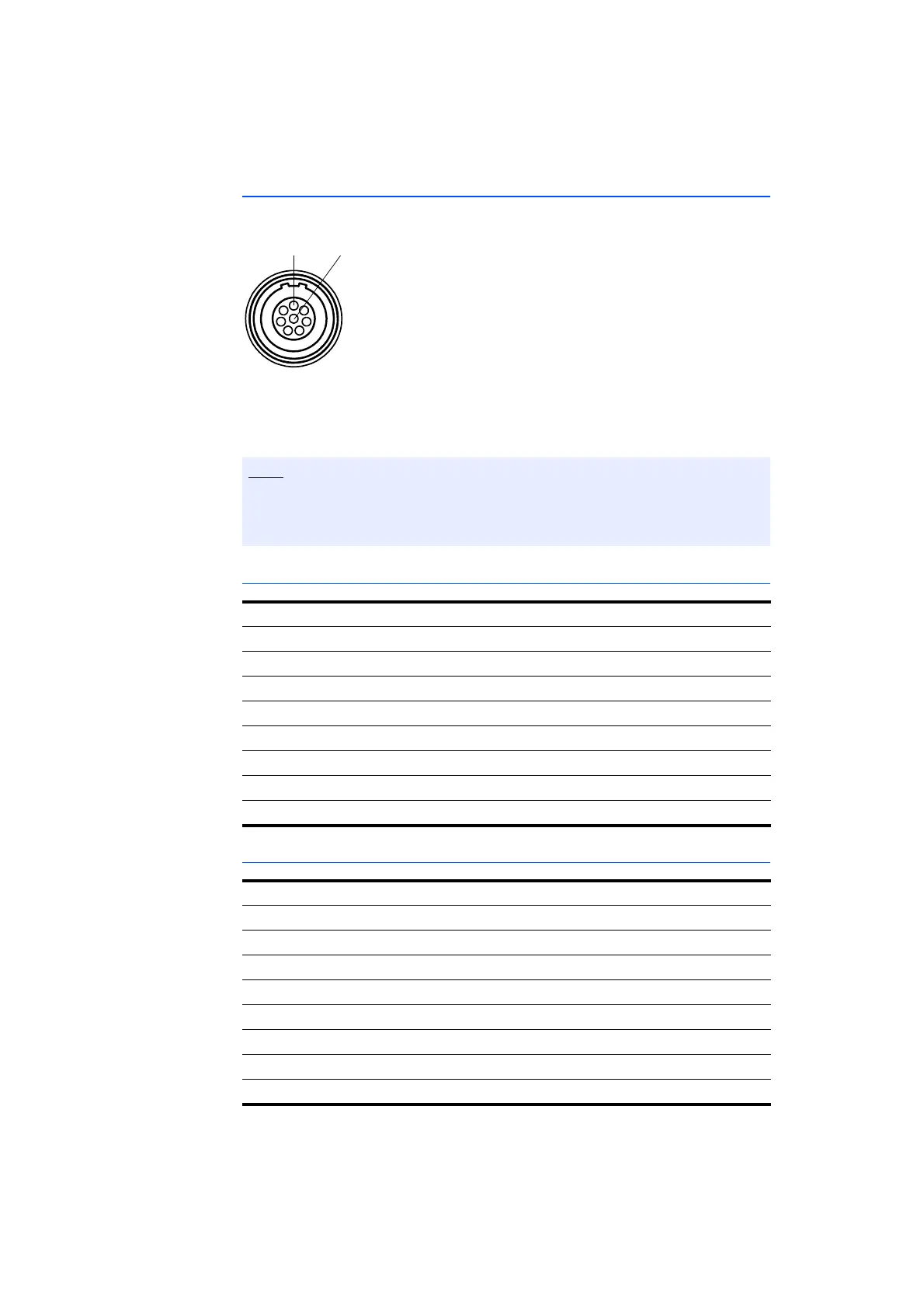

Fig. 7-7 IO Interface (IO)
Socket at the ES910.3-A module: Lemo EPA.1B.308
The suitable Lemo connector for the socket: Lemo FGA.1B.308
Operational Mode "Daisy Chain": Pin Assignment
Operational Mode "EtherCAT": Pin Assignment
Note
The IO interface (IO) can be used either as connection for daisy chain modules
or as connection for EtherCAT. The function of the interface is selected or con-
figured on the web interface of ES910.3-A (see chapter 5.6 on page 60).
Pin Signal Meaning
1 UBATT Operating voltage
2 UBATT Operating voltage
3 GND Ground
4 RX+ Received data, plus
5 TX- Send data, minus
6 RX- Received data, minus
7 GND Ground
8 TX+ Send data, plus
Pin Signal Meaning
1 - Reserved, do not connect
2 - Reserved, do not connect
3 - Reserved, do not connect
4 RX+ Received data, plus
5 TX- Send data, minus
6 RX- Received data, minus
7 - Reserved, do not connect
8 TX+ Send data, plus
1
8
