ETAS ES910.3-A - Fig. 5-9 ETK Bypass System with Daisy Chain Modules

ES910.3-A - User’s Guide 51
ETAS Getting Started
ES910.3-A with Daisy Chain Modules

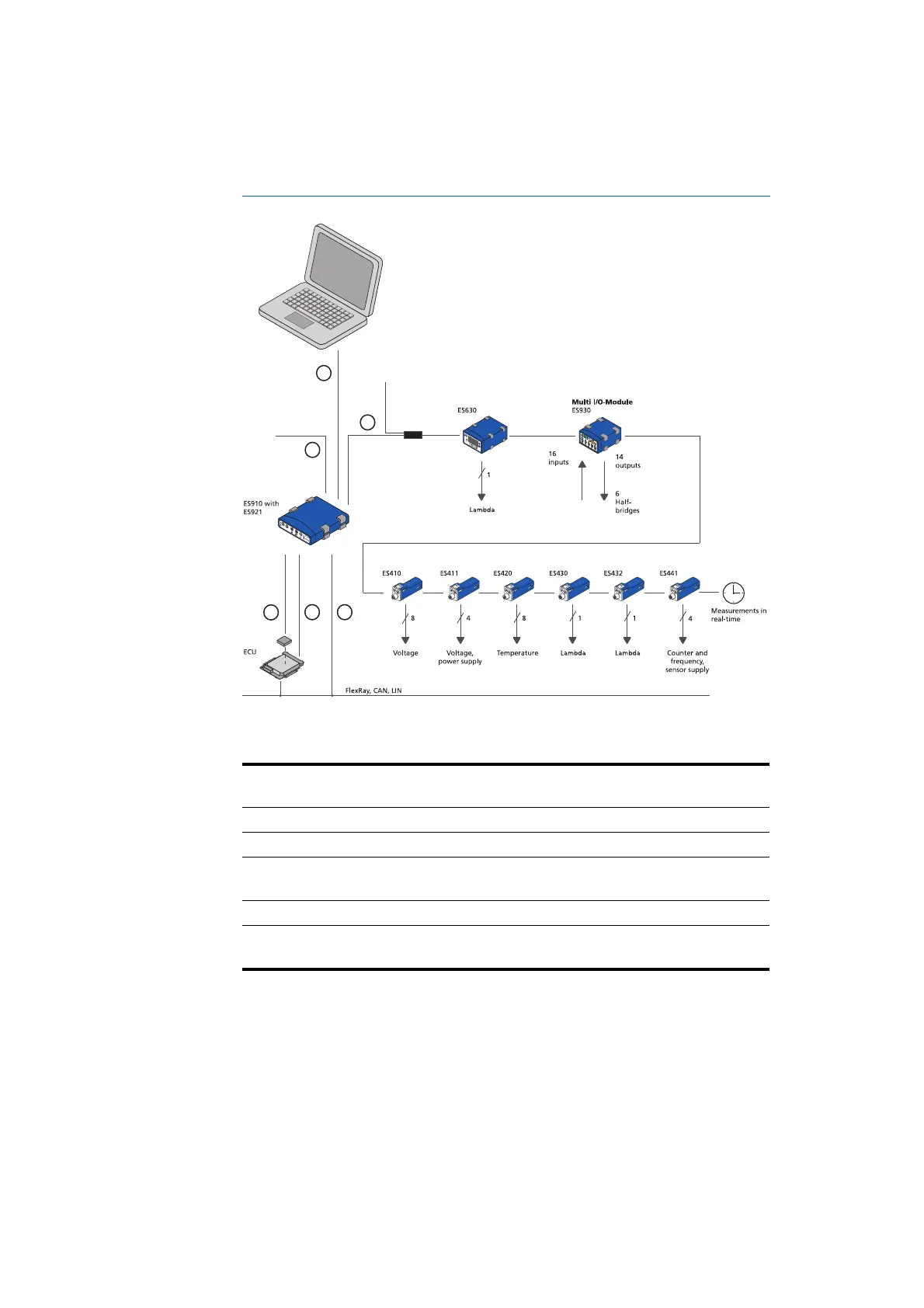

Fig. 5-9 ETK Bypass System with Daisy Chain Modules
ES4xx/ES63x/ES93x modules in a decentral ETAS Ethernet topology (daisy chain)
can be used either for measurement and calibration with INCA or for Rapid Pro-
totyping with INTECRIO and the ES910.3-A module.
The IO interface of the ES910.3-A enables an module chain to be connected
directly. All you need to do is connect the data transfer cable CBEP430 or the
data transfer cable CBEP4305 to the ES910.3-A module.
Cable in
Fig. 5-9
Function Short name
1 Power supply cable CBP120, CBP1205
2 PC connecting cable CBE200
3 Power supply and Ethernet
cable Daisy Chain modules
CBEP430, CBEP4305
4 ETK connecting cable CBM150
5, 6 CAN connecting cable
(CAN only)
CBAC130, CBAC140, CBAC150,
CBCX130
Power Supply
Daisy Chain Modules
4
3
5
Power Supply
2
1
ETK
CAN
CAN
6
