ES910.3-A - User’s Guide 50
ETAS Getting Started
5.4.2 ETK Bypass System with Simultaneous Measuring and Calibration
ES910.3-A with ES600 Network Module
Using an ES600 network module makes it possible to measure and calibrate
simultaneously in the ETK Bypass System.

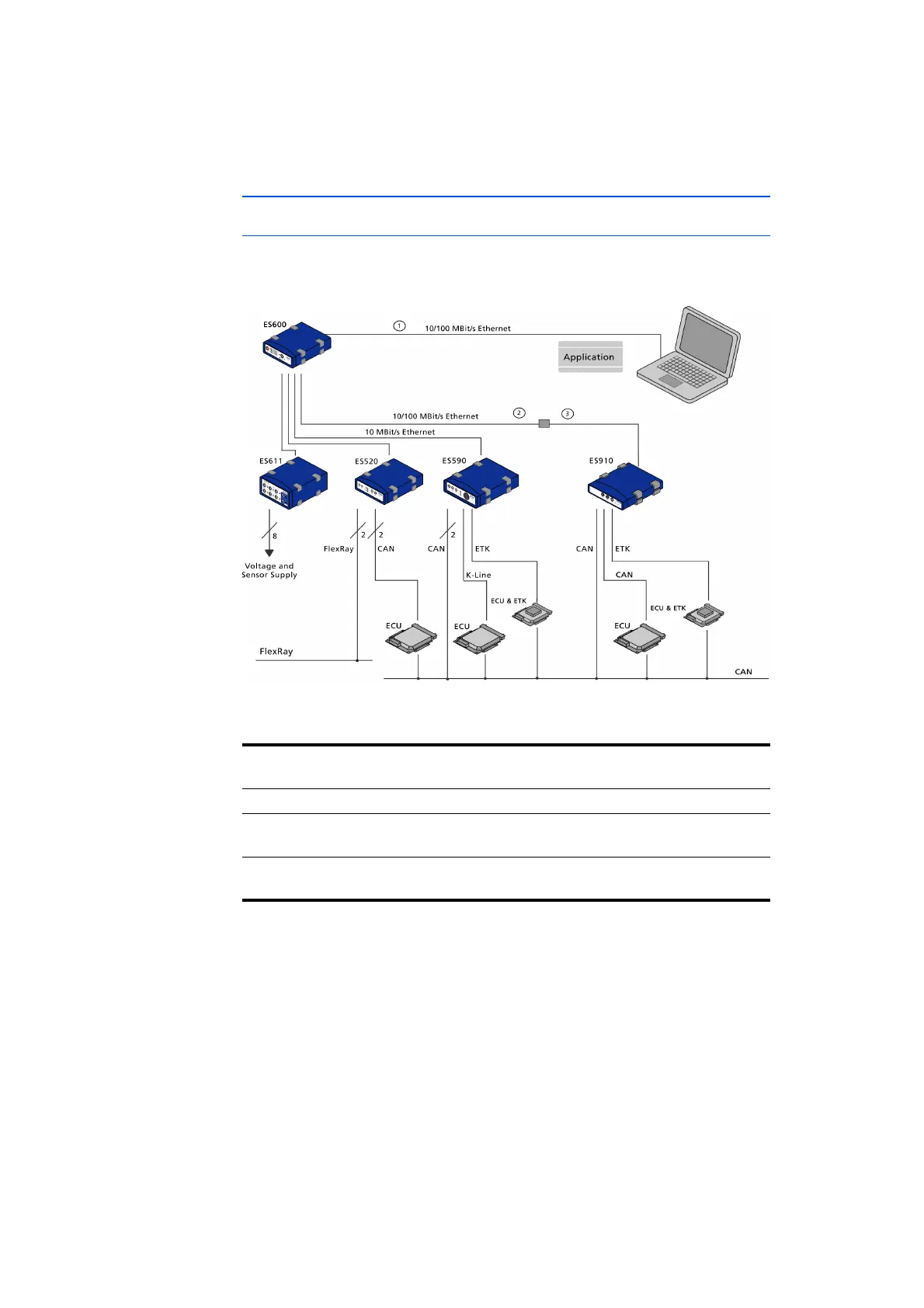

Fig. 5-8 ETK Bypass System with Simultaneous Measuring and Calibration
In INCA/INCA-EIP, the ES910.3-A Rapid Prototyping Module acts as an ECU with
a calibration port. INCA synchronizes the measure signals from the Rapid Proto-
typing Target with those of the vehicle ECU and sensors (see Fig. 5-8
on page 50).
In bypass experiments, INCA has access to all control and diagnostic parameters
as well as to all measure signals of the connected ECU via the ETK interface of
the ES910.3-A. In addition, INCA/INCA-EIP provides access to all bypass variables
stored in the ES910.3-A Rapid Prototyping Module.
Further bus analysis functions on the CAN bus (CAN Monitoring, CAN CCP or
XCP on CAN) can be made accessible with the modules ES59x/ES520, for exam-
ple.
Cable in
Fig. 5-8
Function Short Name
1 PC connecting cable CBE100
2 Ethernet adapter cable
(100 Mbit/s)
CBAE330 (connected to cable 3)
3 Ethernet connecting cable
(1 Gbit/s)
CBE230 (connected to cable 2)
