ES910.3-A - User’s Guide 98
ETAS Cables and Accessories
8.4 Combined CAN and LIN Cable

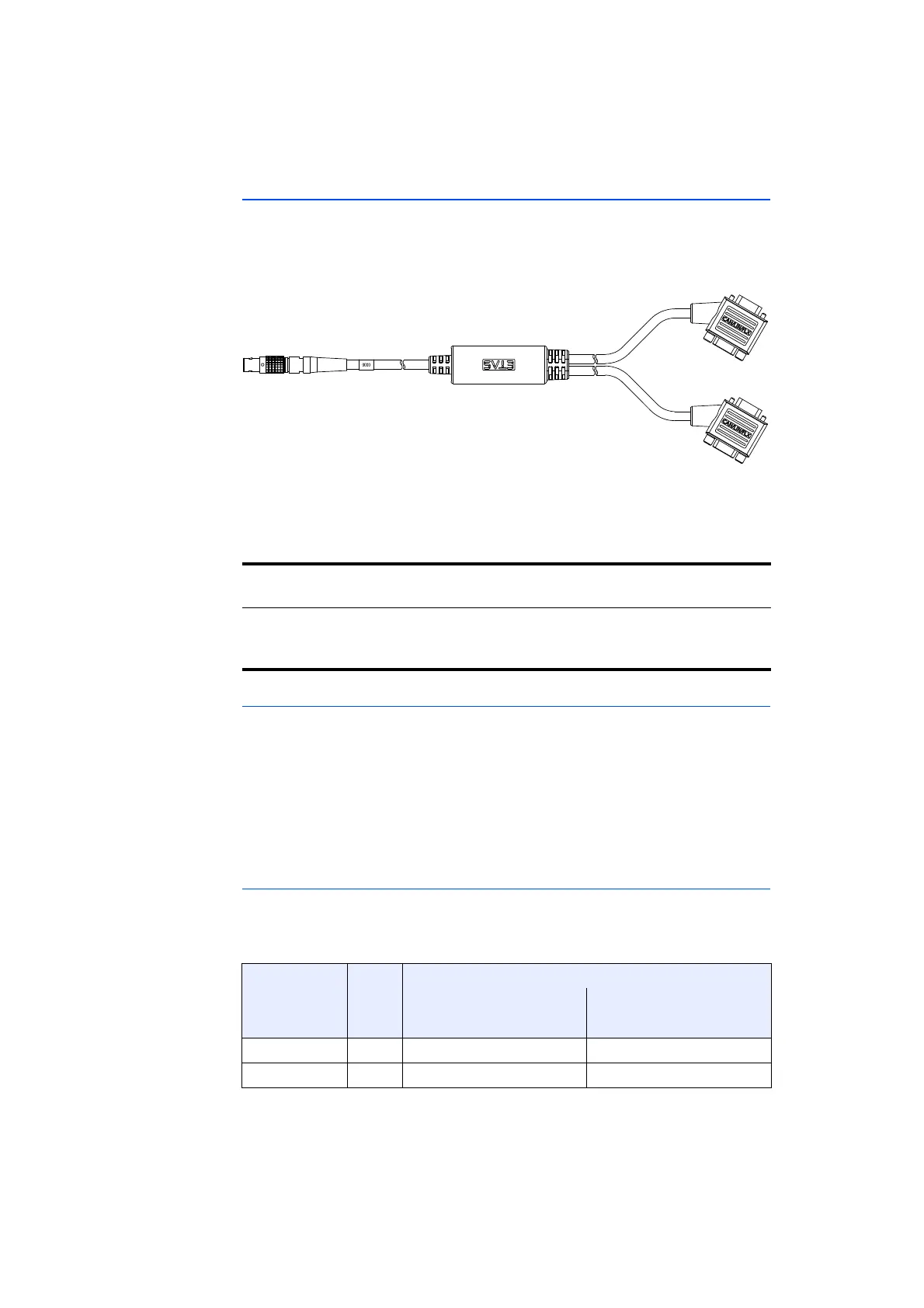

Fig. 8-5 CBCFI100 Cable
Mapping of DSUB Socket Plug Combinations of the Cable
The 8-pin Lemo plug of the CBCFI100 cable can be connected either to the
CAN1/LIN1 interface or the CAN2/LIN2 interface. At the other end of the CBC-
FI100 cable are two 9-pin DSUB socket plug combinations:
• a socket plug combination (side B and C) marked in gray for connection
to the CAN bus, and
• a socket plug combination (side D and E) marked in black for connection
to the LIN bus.
Mapping of DSUB Socket Plug Combinations to ES910.3-A
If one CBCFI100 cable each is used at the interfaces CAN1/LIN1 and CAN2/LIN2
of ES910.3-A, these interfaces are mapped to the DSUB socket plug combina-
tions of both cables as follows:
Side B/C
gray
Side A Side D/E
black
Order Name Short Name Order
Number
CAN, FlexRay and LIN Interface Y-Cable,
Lemo 1B FGC - 2xDSUB (8mc-9fc + 9mc),
2 m
CBCFI100-2 F 00K 106 893
ES910.3-A Cable Cables in CBCFI100 Fig. 8-5
Connection Socket (B) / plug (C) Socket (D) / plug (E)
(DSUB, color: gray) (DSUB, color: black)
CAN1/LIN1 1 CAN1 LIN1
CAN2/LIN2 2 CAN2 LIN2
