ES910.3-A - User’s Guide 53
ETAS Getting Started
5.4.3 ES910.3-A with ES720.1 Drive Recorder

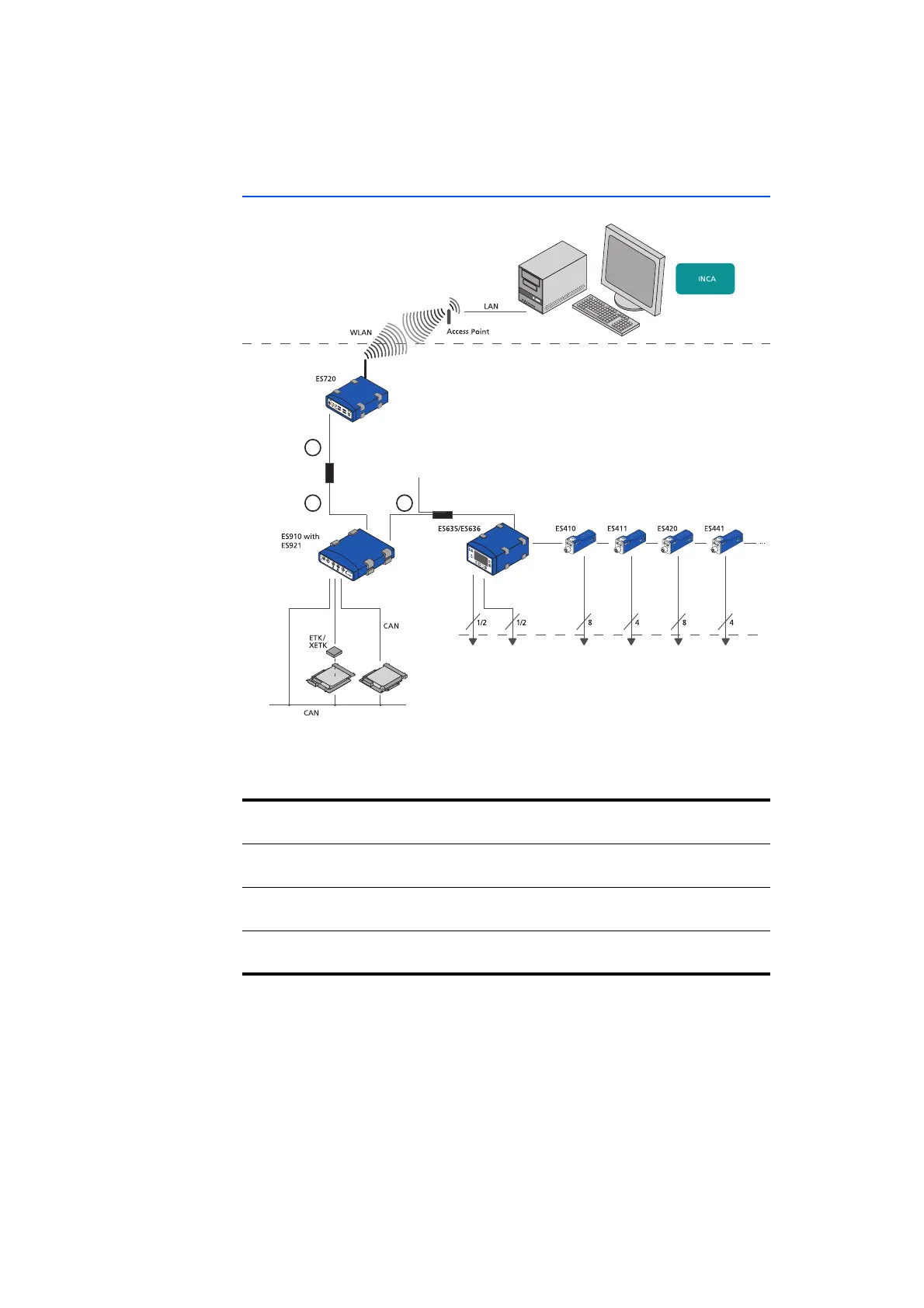

Fig. 5-10 ETK Bypass System with ES720 Drive Recorder and Daisy Chain Mod-
ules
For measurement tasks in the development, application and validation of elec-
tronic vehicle systems, the ES910.3-A module can be connected directly to the
ES720.1 Drive Recorder.
Additional ECU and bus interface modules as well as measurement modules are
networked with each other via Ethernet and connected with the drive recorder
or ES910.3-A.
Cable in
Fig. 5-10
Function Short Name
1 Ethernet adapter cable
(100 Mbit/s)
CBAE330 (connected to cable 2)
2 Ethernet connecting cable
(1 Gbit/s)
CBE230 (connected to cable 1)
3 Power supply and Ethernet
cable Daisy Chain modules
CBEP430, CBEP4305
ECU ECU
Ambient/
Exhaust
Pressure
Lambda Voltage Sensor
Voltage
Tempera-
ture
Frequency,
Counter Results,
Times
Drive Recorder
Vehicle
10/100 MBit/s
Ethernet
1 GBit/s
Ethernet
1
2
Power Supply
Daisy Chain Modules
3
Daisy Chain Measurement Modules
