ETAS ES910.3-A - ETK Interface (ETK); Fig. 7-5 ETK Interface (ETK)

ES910.3-A - User’s Guide 90
ETAS Technical Data
7.8.4 ETK Interface (ETK)

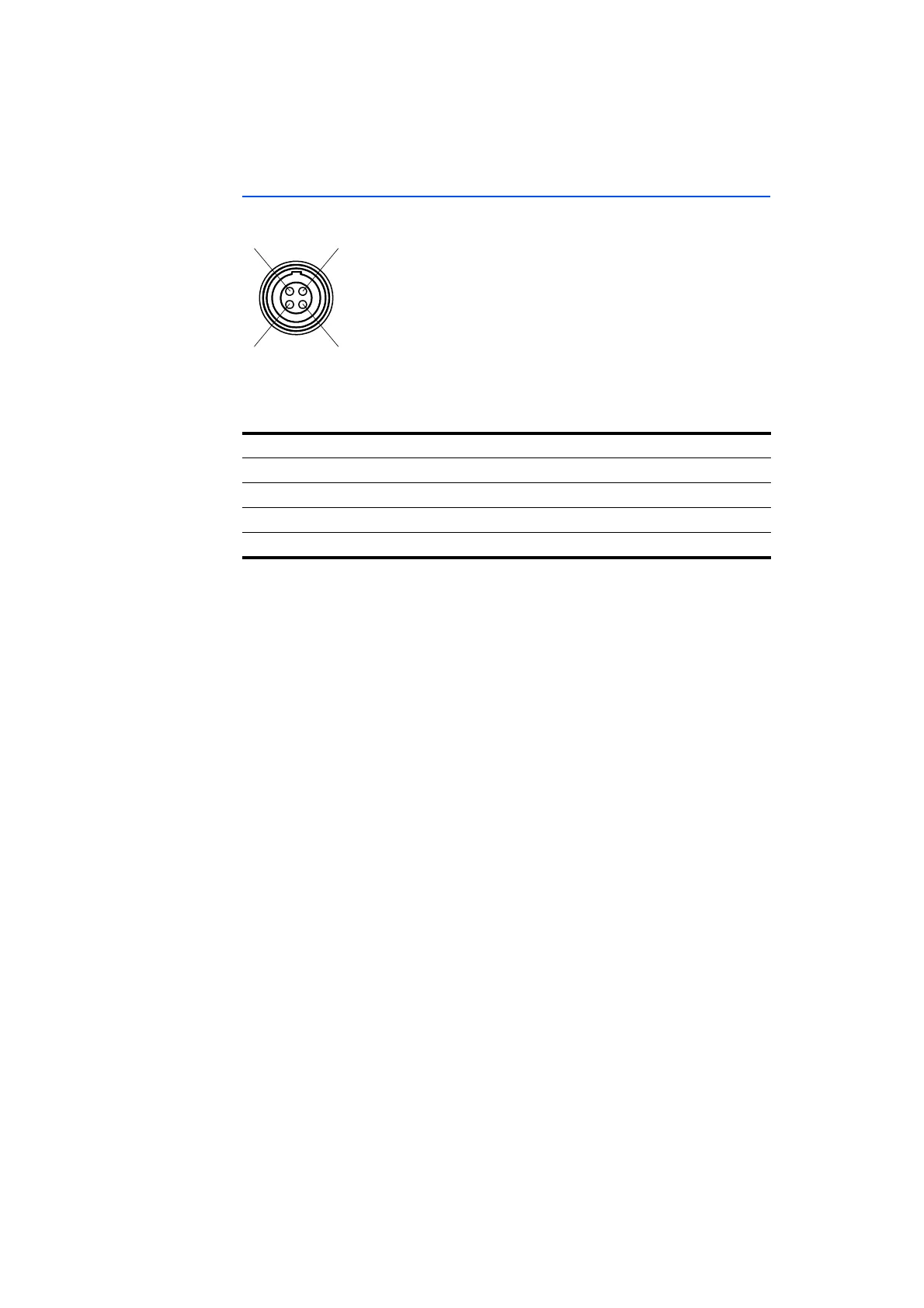

Fig. 7-5 ETK Interface (ETK)
Socket at the ES910.3-A module: Lemo EPG.1B.304
Pin Signal Meaning
1 TX+ Send data, plus
2 TX- Send data, minus
3 RX+ Received data, plus
4 RX- Received data, minus
1
3
4
2
