5.4 Applications
5.4.1 ETK Bypass Systems
ETK Bypass System via ETK Interface and CAN Interface
In this application, the rapid prototyping tasks and the calculating of the func-
tions are realized by the ES910.3-A. The ES910.3-A is equipped with an access
via the CAN interfaces (High-Speed or Low-Speed) and the ETK interface for
bypass applications. Additionally measure and calibration applications can be
executed using the CAN interfaces and the ETK interface.

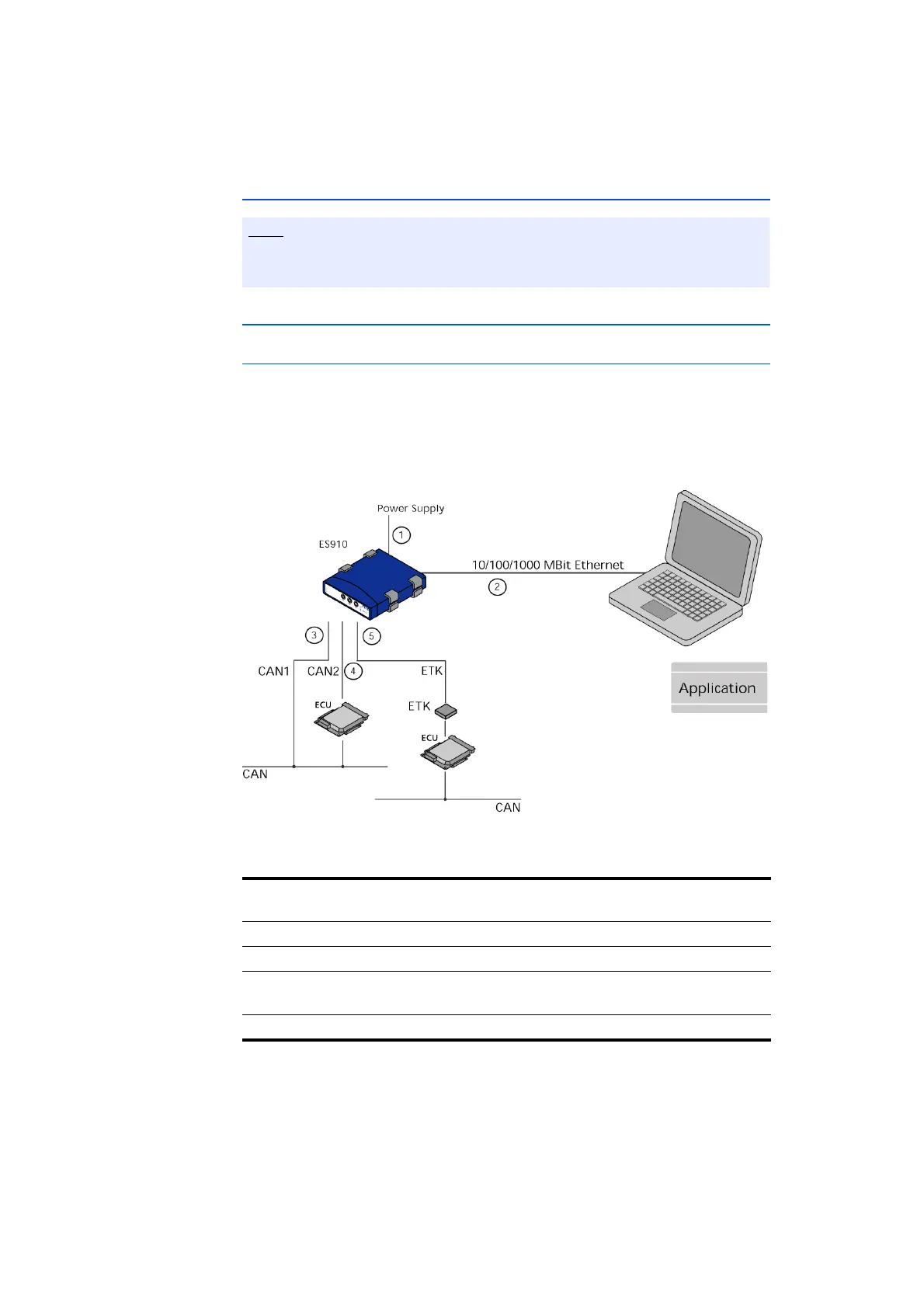

Fig. 5-5 ETK Bypass System with ES910.3-A
Note
You can find a list of applications supported by the ES910.3-A in chapter 7.6.2
on page 78.
Cable in
Fig. 5-5
Function Short Name
1 Power supply cable CBP120, CBP1205
2 PC connecting cable CBE200
3, 4 CAN connecting cable K106, K107, CBAC130, CBAC140,
CBAC150, CBCX130
5 ETK connecting cable CBM150
