ES910.3-A - User’s Guide 89
ETAS Technical Data
7.8.3 CAN/LIN Interface (CAN1/LIN1 and CAN2/LIN2)

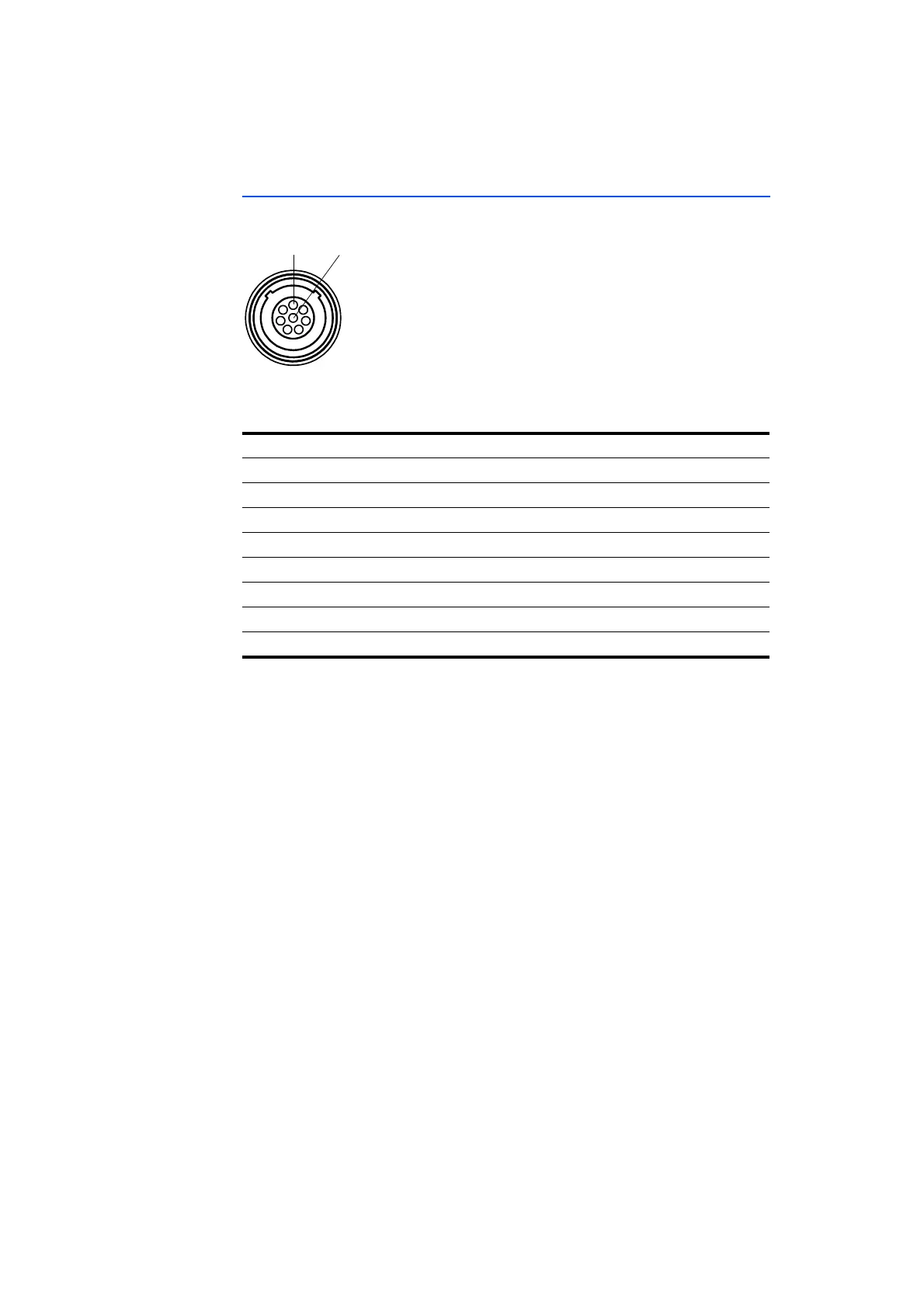

Fig. 7-4 CAN/LIN Interface (CAN1/LIN1 and CAN2/LIN2)
Socket at the ES910.3-A module: Lemo EPC.1B.308
Pin Signal Meaning
1 UBATT (LIN)
2 CAN_LOW
3 CAN_GND
4LIN
5LIN_GND
6 CAN_GND
7 CAN_HIGH
8- Reserved
1
8
