ETAS ES910.3-A - PC Interface (PC); Fig. 7-3 PC Interface (PC)

ES910.3-A - User’s Guide 88
ETAS Technical Data
7.8.2 PC Interface (PC)

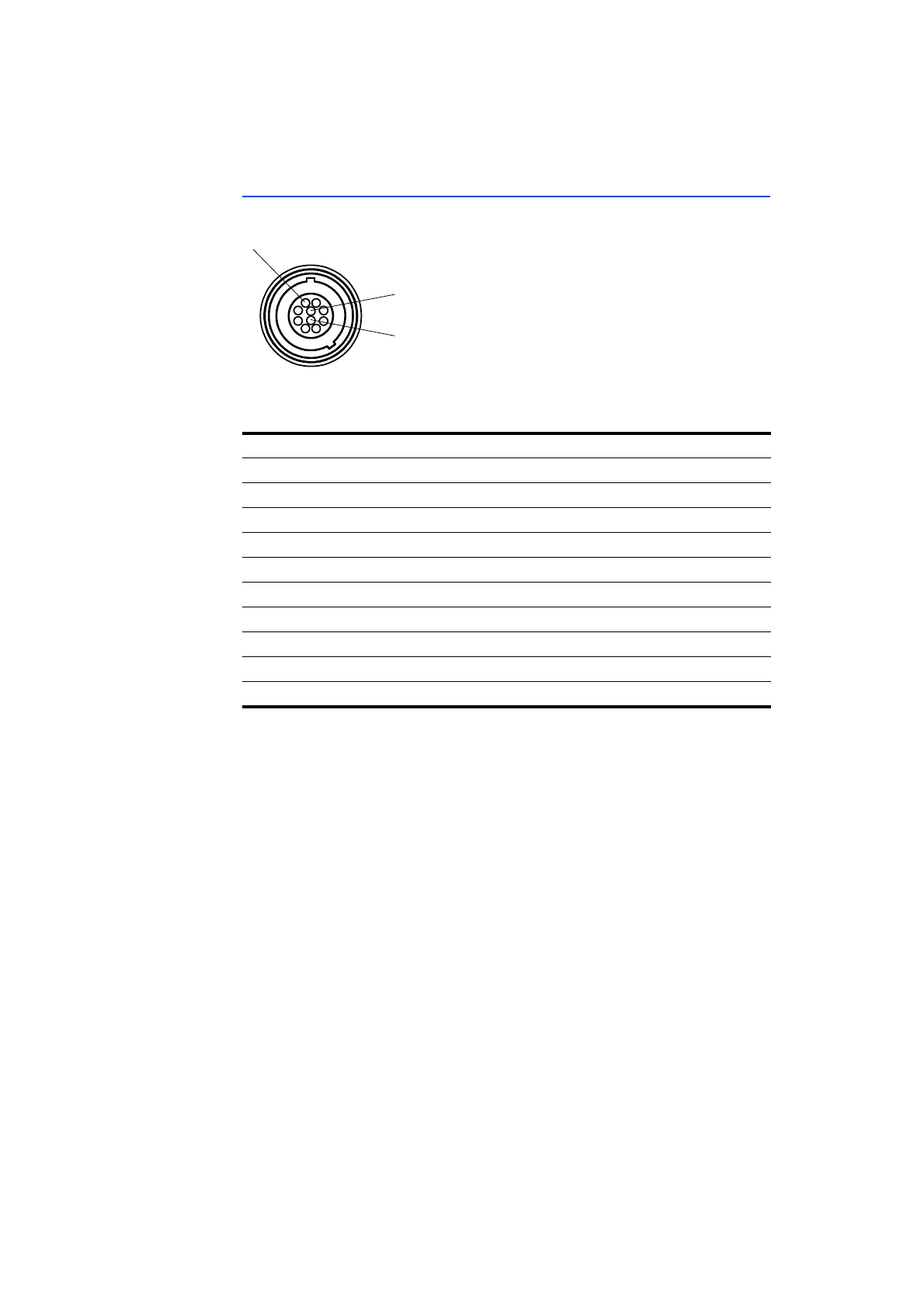

Fig. 7-3 PC Interface (PC)
Socket at the ES910.3-A module: Lemo EPE.1B.310
Pin Signal Meaning
1TXD1+
2BID3-
3BID3+
4RXD2-
5RXD2+
6BID4-
7BID4+
8TXD1-
9- Reserved
10 - Reserved
1
9
10
