48 Eos Operations Manual

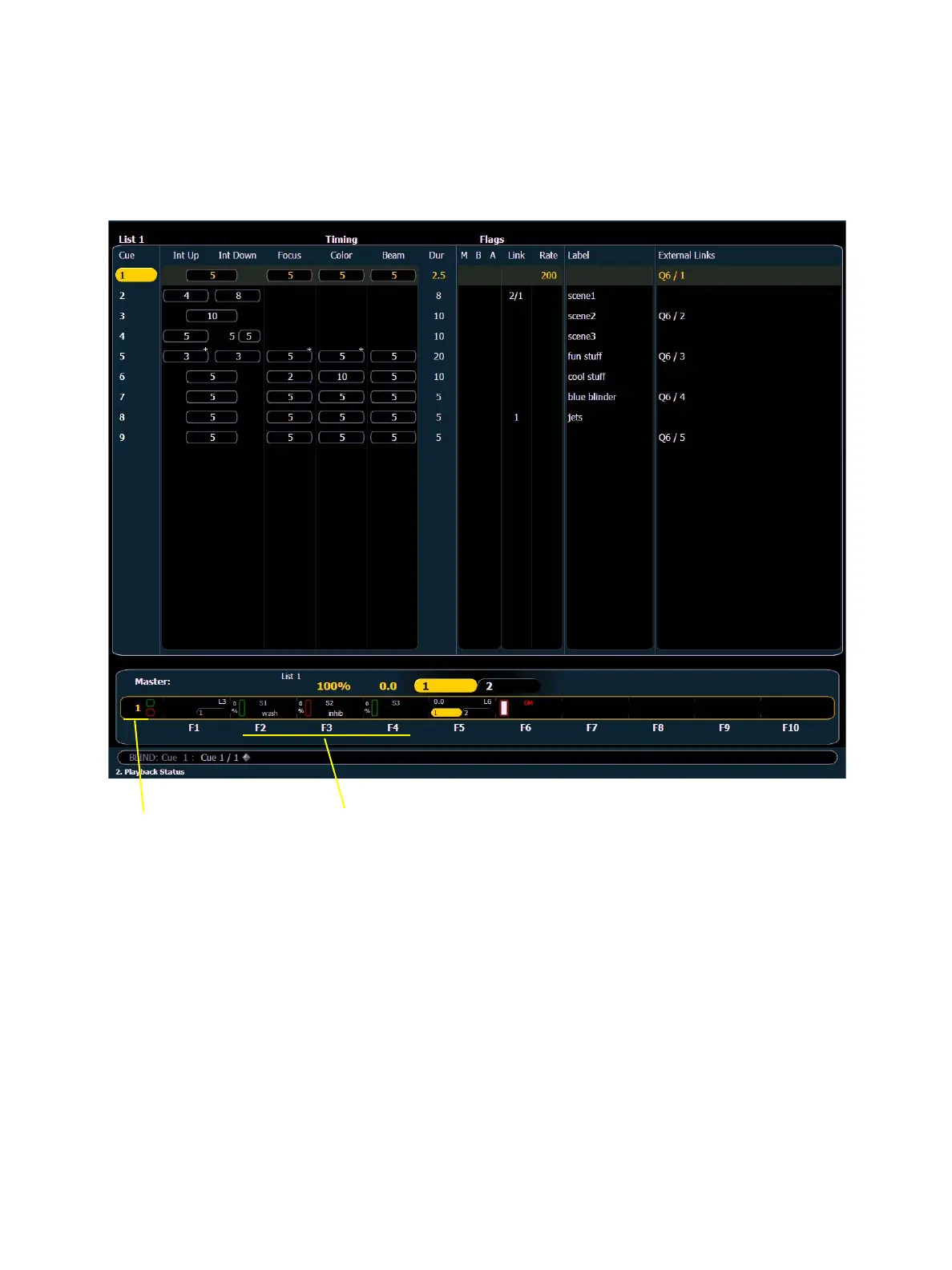

Expanded Cue List Format

Pressing [Format] with the playback status display active will access this format, In expanded cue

list, the view of the active cue list increases to the full size of the display. The current fader page is

still visible at the bottom of the screen.

Fader page

number

Fader numbers
