4.19.1. Video & Keyer Timings
Type: Enables you to select to the transition type. Types include: Cut, V Fade, Cut-Fade, Mix,
and Fade-Cut.
Duration: Enables you to set the total duration.
Fall / Dwell / Rise: Enables you to the set the fall, dwell, and rise options.
4.19.2. View Table
Selecting this button will open the “Transition Adjustment” window as illustrated in Figure 4-38. This
window enables you to view your current transition details for each transition.

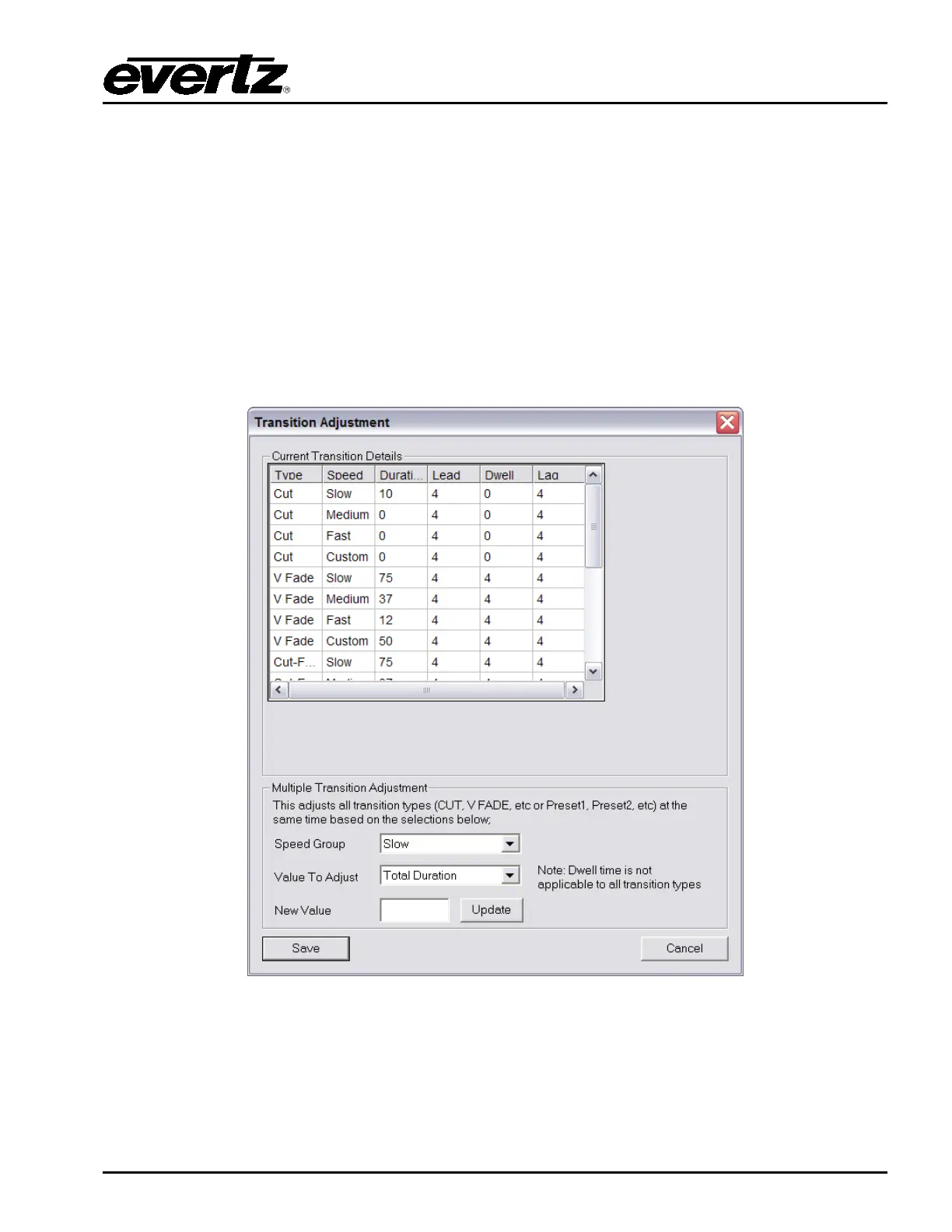

Figure 4-38: Transition Adjustment Window
