3025SW Master Control Switching & Channel Branding
Page 16 Revision 1.0
2.9.1.2. VIDEO OUTPUTS

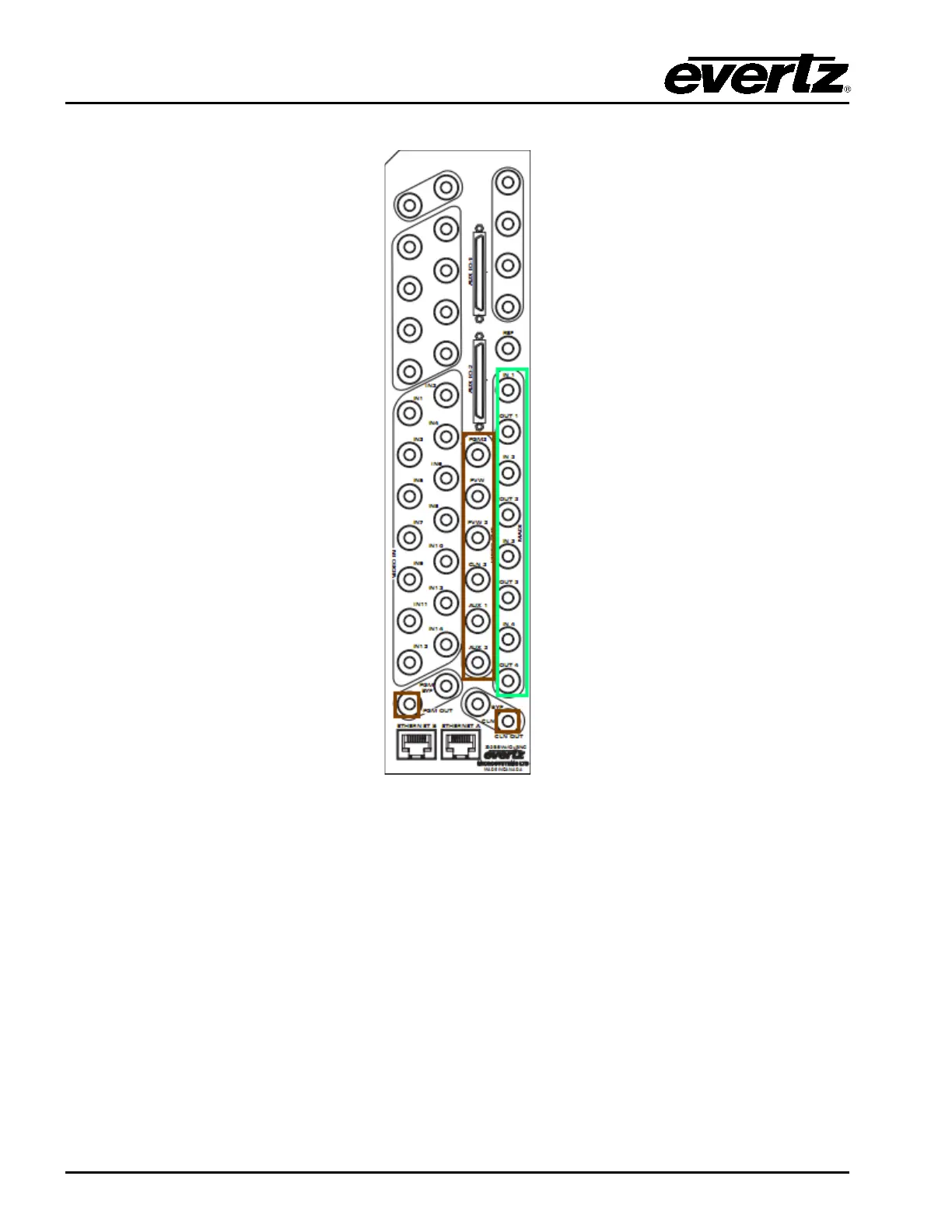

Figure 2-6: VIDEO OUTPUT and MADI I/O Connections
PGM: Program Output with bypass protection.
PGM 2: Program Output 2. This is a copy of Program Output.
PRV: Preview Output.
PRV 2: Preview Output 2. This is a copy of Preview Output.
CLN: Clean Feed Output with bypass protection.
CLN 2: Clean Feed Output 2. This is a copy of Clean Feed output.
AUX 1: Auxiliary Output 1. This can be used as a second independent clean path.
AUX 2: Auxiliary Output 2. This is a copy of Auxiliary Output 1.
