3025SW Master Control Switching & Channel Branding
Revision 1.0 Page 51
4.5. AUDIO CONFIGURATION

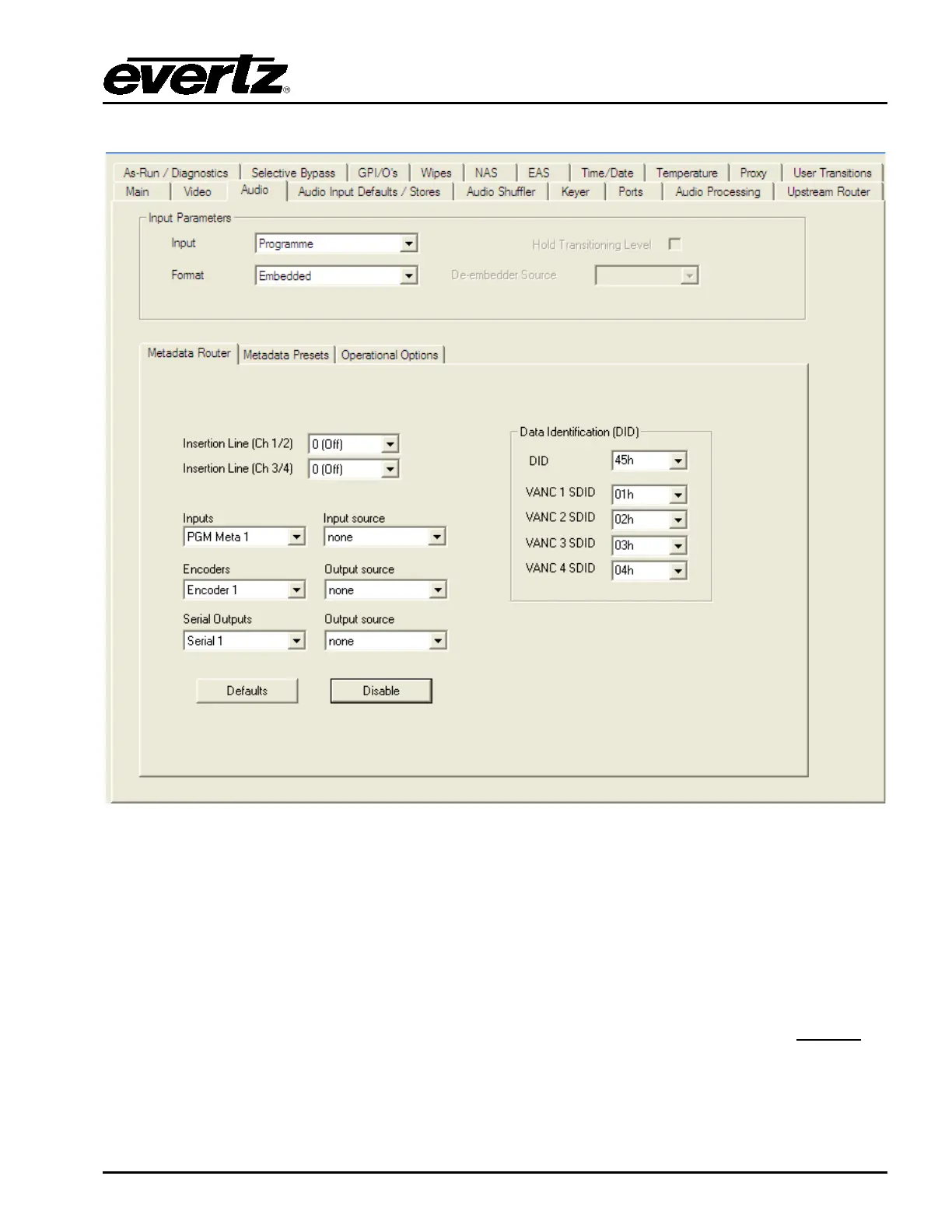

Figure 4-16: Audio Tab
4.5.1. Input Parameters
These parameters will determine the state that the 3025SW will default to when the power is cycled or
the 3025SW is reconfigured.
Users will set the audio format for the various inputs of the 3025SW.
The 3025SW has 3 16 channel fixed de-embedders, one each for the Program, Preset and Emergency
Inputs. The inputs to the Program, Preset and Emergency de-embedders are located AFTER
the
internal router.
In addition to the Program, Preset and Emergency de-embedders there are also 5 additional 16
channels de-embedders that can be assigned by the user.
