evertz 3025SW - Figure 4-2: Channel Selection for IP Address Configuration; Figure 4-3: IP Address Setup

3025SW Master Control Switching & Channel Branding
Page 32 Revision 1.0
Next, choose Network then IP Address Setup. You will then be presented with the following dialogue.

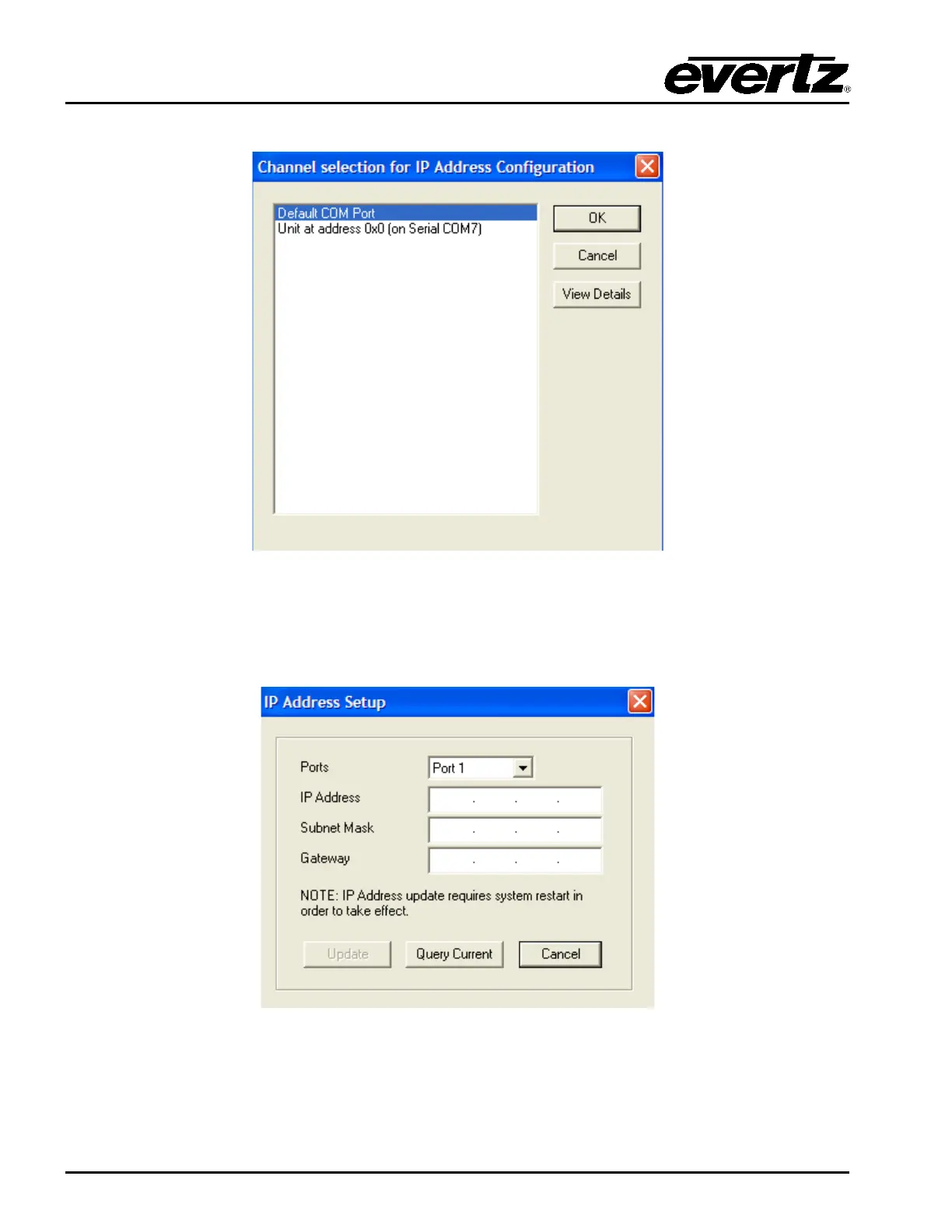

Figure 4-2: Channel Selection for IP Address Configuration
Next, choose Default COM Port and the select OK.
The following dialogue will now be displayed.
Figure 4-3: IP Address Setup
