3025SW Master Control Switching & Channel Branding
Page 140 Revision 1.0

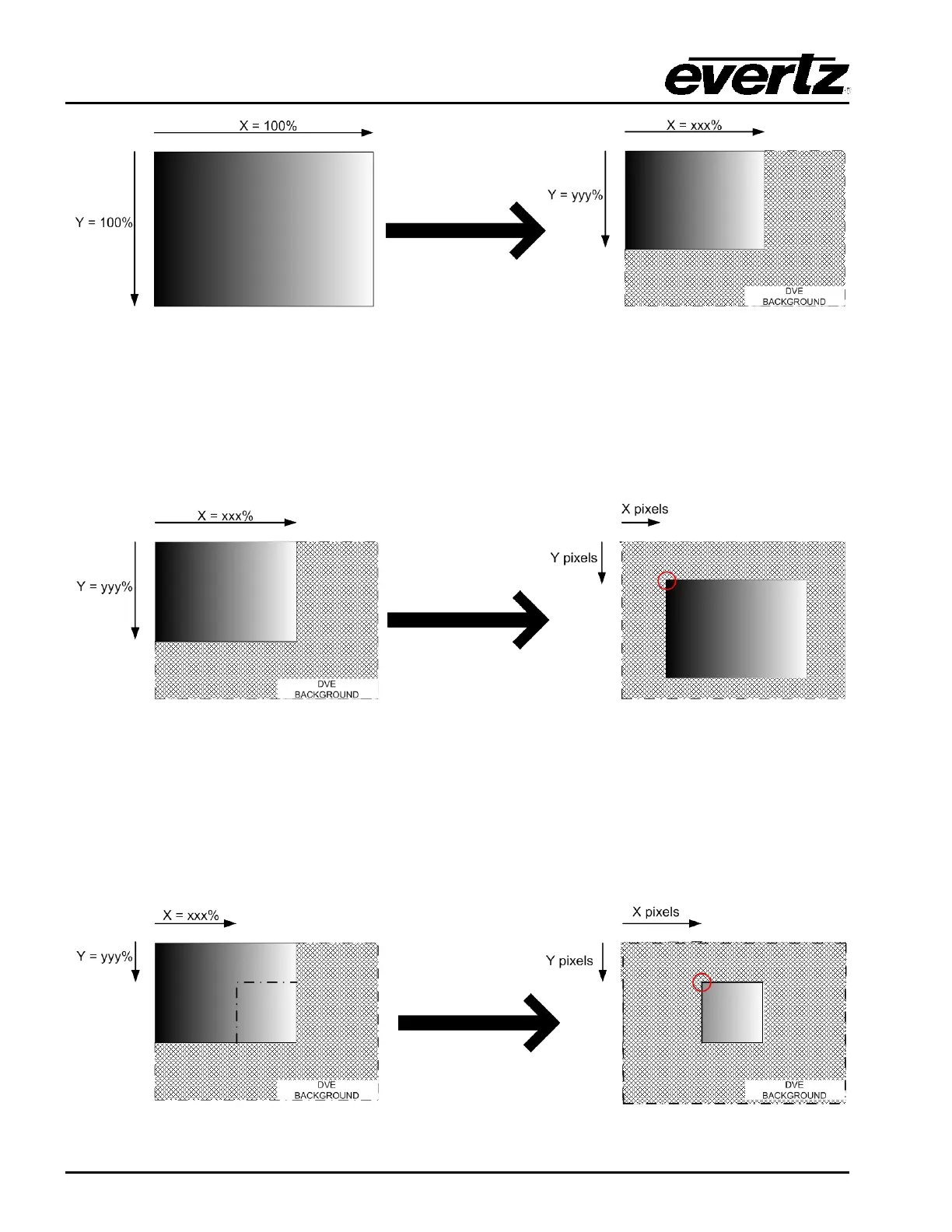

Figure 7-6: DVE Scaling
The number of fields/frames that the DVE move takes to scale from the start position to the end position
is configured in the move as the Transition Time.
If there is NO CROPPING configured then the X/Y position is the position of the TOP LEFT CORNER
after scaling.
Figure 7-7: After Scale X/Y Position
Cropping can either be performed on a full screen DVE or on a DVE that has already been scaled.
If cropping is performed then the X/Y Position is the X/Y Position of the TOP CORNER OF THE
CROPPED DVE and NOT of the scaled DVE. Cropping can either be performed as a
percentage/number of pixels of the full screen (both start and end frame) or performed as a
percentage/number of pixels of the scaled DVE (end frame only).
Figure 7-8: After Cropping X/Y Position
