6.3.5. QMC-DCP – Dialog
When the QMC-DCP panel is selected, the following configuration window will appear:

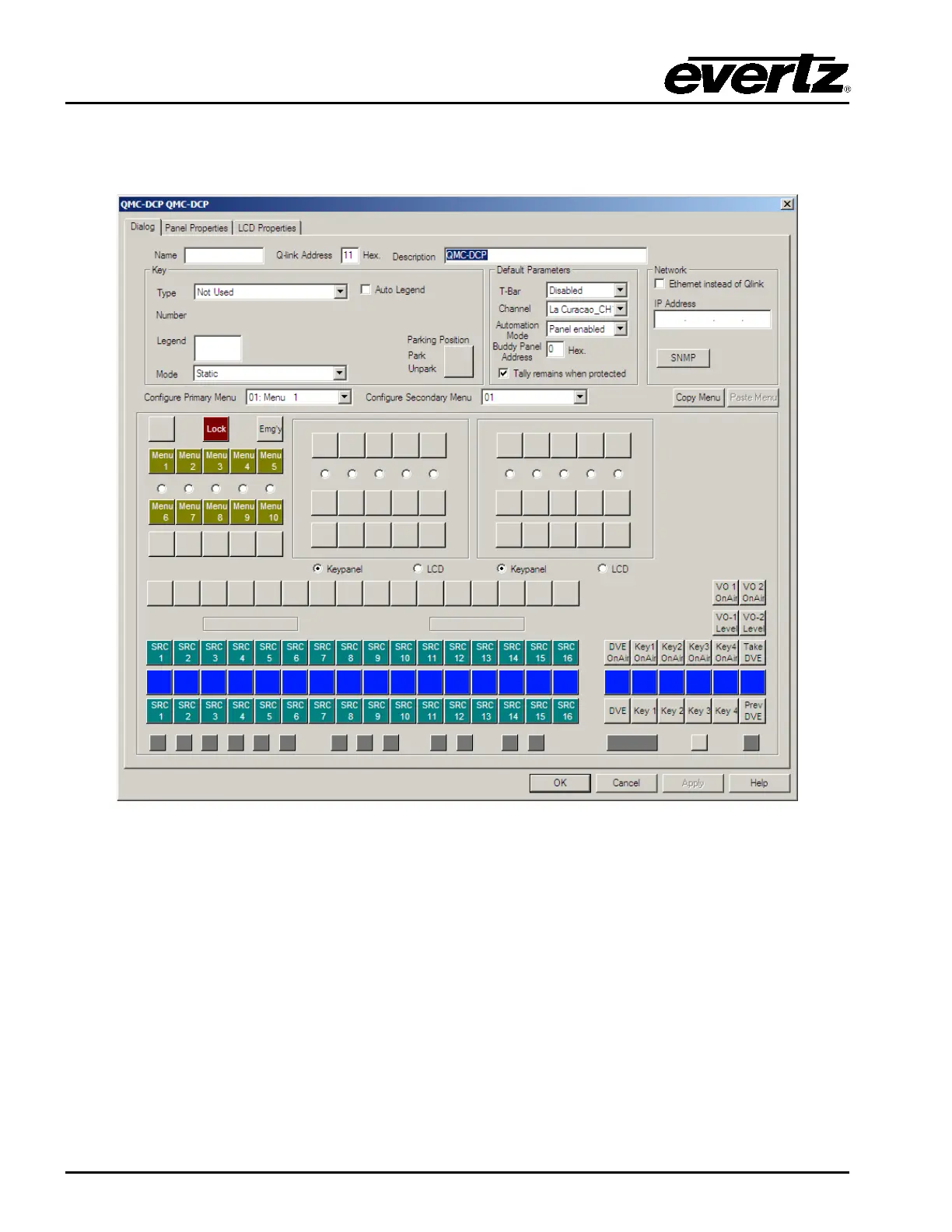

Figure 6-9: QMC-DCP Dialog Tab
This is the configuration of the panel and the LCD button layout it will use. Under the Key Definition tab
you have the following:
Name: This allows for a name to be configured for the panel.
QLink Address (in Hex): This is the QLink Address of the panel. Similar to QLink addressing for
the EMC to communicate with an Evertz router, the panels use the same
scheme to interact with the 3025SW channels. This QLink address has to match
the QLink set on the control panel itself.
Description: This allows for a description to be configured for the panel.
