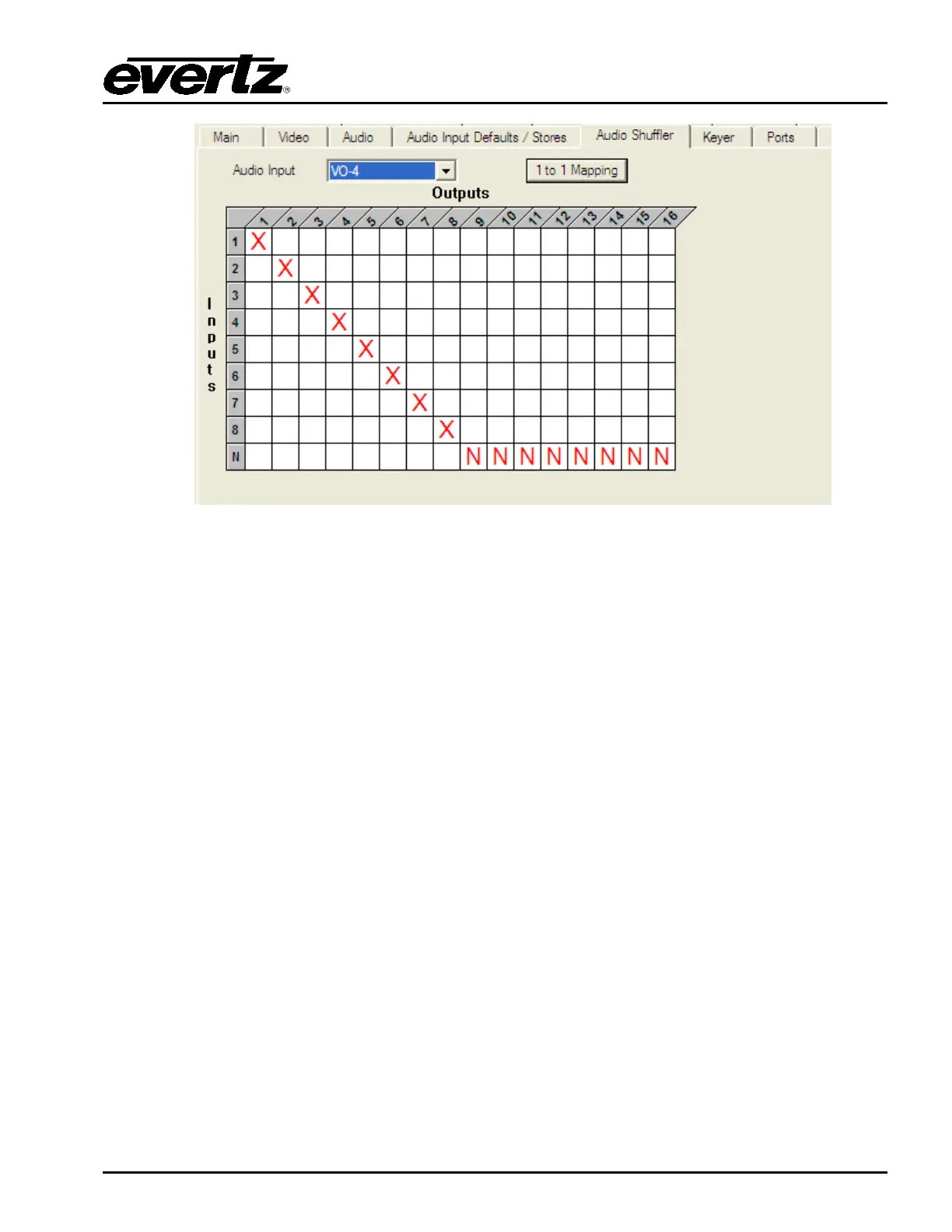

Figure 4-20: VO4 Audio Clip Duck & Mix
When Audio Clips are used the VO4 channels that are mixed and the PGM/PST channels that are
ducked is determined automatically by the number of channels that are present in the audio wav file.
In the above example, if the wav file is 8 channels then all 8 channels PGM/PST channels A1 to A8 will
be ducked and VO4 channels A1 to A8 will be mixed.
Any VO4 channel that is configured for “N” specifies that that audio channel will not be mixed and the
corresponding PGM/PST audio channel will not be ducked.
The mixing and ducking options for VO4 (when configured for Audio Clips) will follow the input channel.
For example, if I had shuffled VO4 channels A1/A2 to output channels A9/A10 then the audio from inputs
A1/A2 will be shuffled to A9/A10 and so will the ducking and mixing.
4.7.1. Shuffle Stores
There are also 16 user configurable shuffle stores available. The shuffle store configuration can be
exposed by selecting Shuffle Store from the Audio Input drop-down menu.
When a shuffle store has been configured it can be applied to any bus.
The difference between the Shuffle Stores and the Audio Input default shuffle mapping is that in the
Shuffle Store configuration audio channels from different buses can be shuffled between buses.
