4.8.4. Global Option
4.8.4.1. Change Keying Levels on Source
When the preset or program bus is changed from source to source the EMC can optionally change the
keying levels applied to that bus to the configuration determined for that source (in the source table).
This option enables this function to be active. This is not currently supported
.
4.9. PORTS
This tab enables the user to edit the configuration of the Q-link and serial ports. Each 3025SW channel
has a maximum of six serial ports (requires AUX I/O 2). Each of which can be set to handle any one of a
number of protocols.

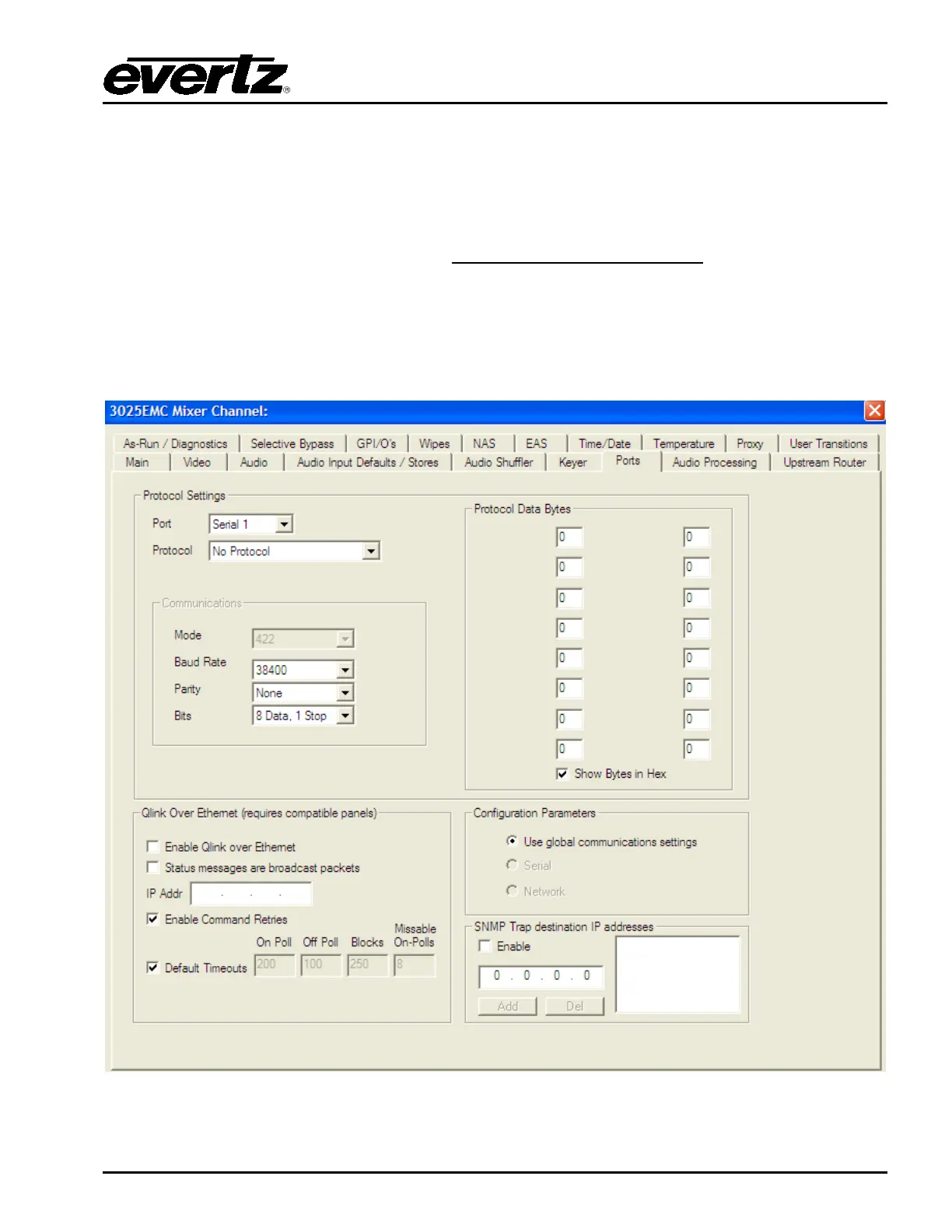

Figure 4-23: Ports Tab
