evertz 3025SW - GPI;O Configuration

3025SW Master Control Switching & Channel Branding
Revision 1.0 Page 83
Date: This field sets the date.
Time: This field sets the time.
Time Zone: Select a time zone using the drop down menu.
Server IP: This field sets the NTP Server IP address. The NTP server will be the source for the time
related media and logging.
4.15. GPI/O’S
This tab enables the user to configure the General Purpose Inputs and Outputs parameters.

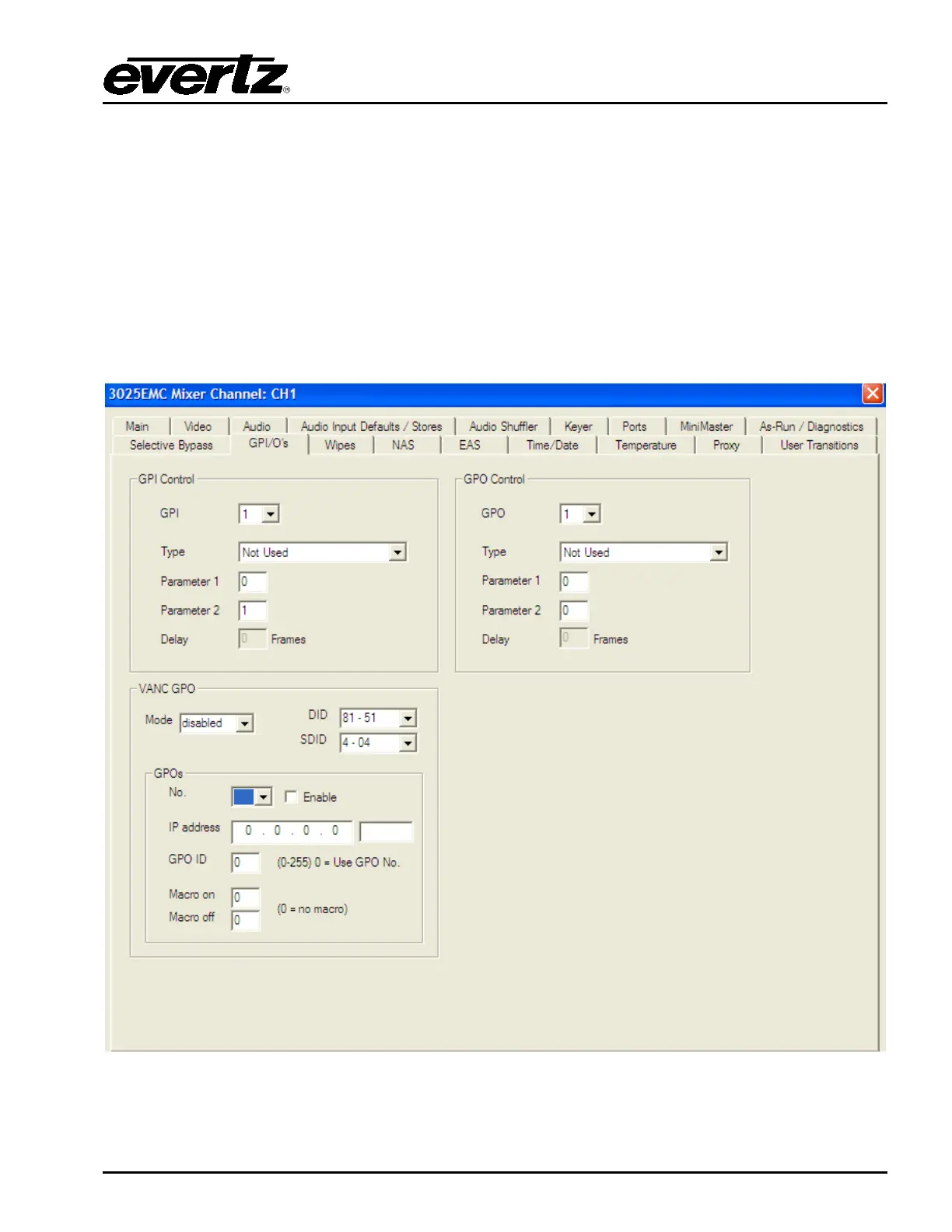

Figure 4-31: GPI/O’s Tab
