Horizontal Size: The horizontal size of the border can be defined by editing a specific number of
pixels or a percentage of the full horizontal pixel length.
Vertical Size: The vertical size of the border can be defined by editing a specific number of lines
or a percentage of the total number of vertical lines.
Inside Softness: The inside of the border can have a softness applied to it. A value of 0% indicates
no softness and a sharp inside edge for the DVE move.
Colour: A colour can be given to the border by specifying a particular Y, Cb, and Cr value
or by selecting the Choose button for a colour palette.
Outside Softness: The outside of the border can have a softness applied to it. A value of 0%
indicates no softness and a sharp outside edge for the DVE move.
7.2.2.4. Background/Source
For both a Primary DVE and Secondary DVE the user can configure both the foreground and
background sources that will be used. In the below example, when the DVE Move is previewed the DVE
Background Source will be DVE 1 (IN 13) and the DVE Foreground Source will be PST.

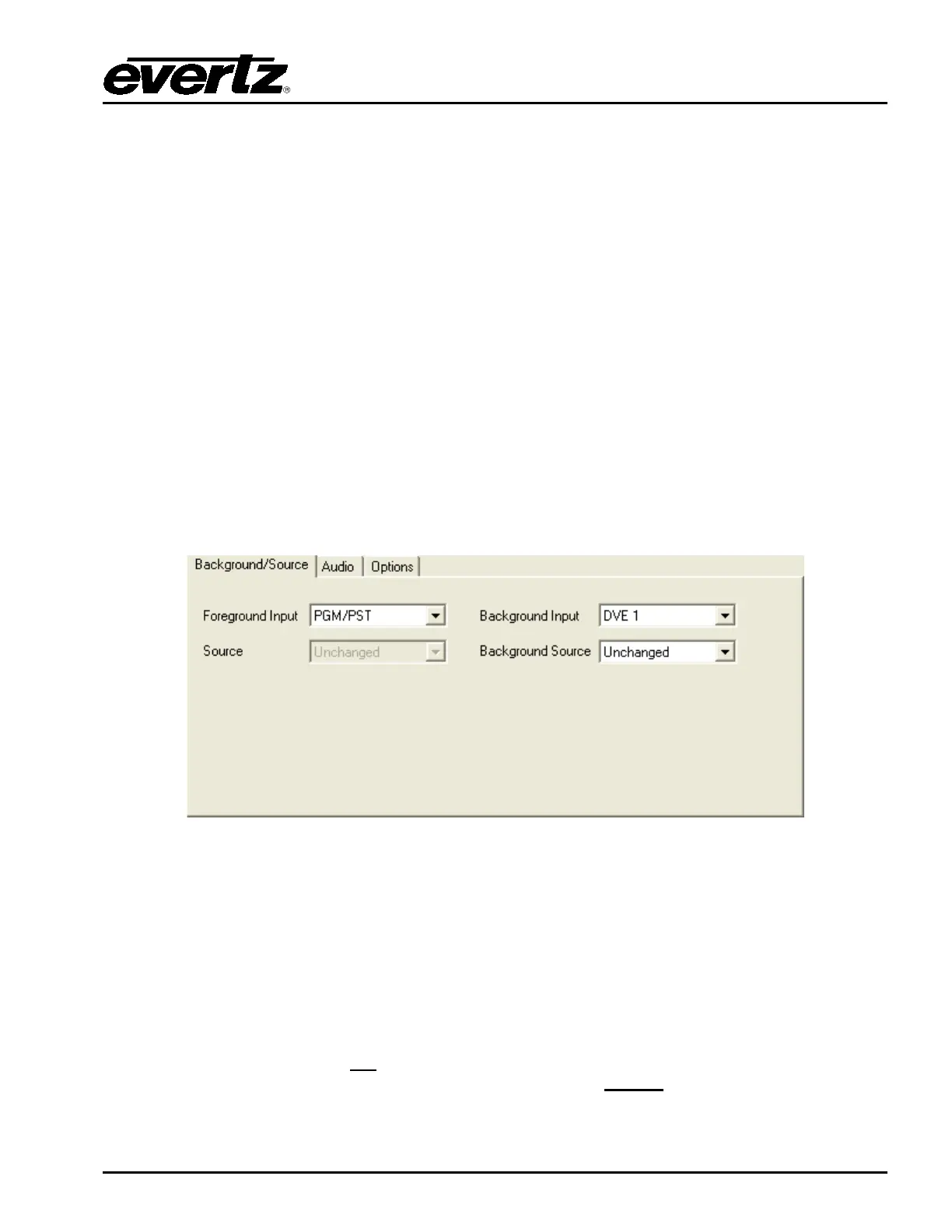

Figure 7-3: Background/Source Tab
Foreground Input: When the DVE is triggered this is the 3025SW input that will be used for the DVE A
or DVE B foreground. If the foreground input is configured for PGM/PST then the
foreground will be the input routed to the PST BUS and if the move is previewed
and the input routed to the PGM BUS if the move is taken on-air. Other possible
sources are KEY/FILL 1, 2 & 3, DVE 1 & 2, EMG and AUX 1, 2 & 3. NOTE:
Depending on the version of EMC-Setup you have you might need to convert the
3025EMC background source name to the 3025SW BNC input number. See Page
15 for more details on this.
Source: This does not
apply to the 3025SW as there is no upstream router connected
to the 3025SW inputs. This setting should always
be UNCHANGED.
