4. Commissioning positioning systems
4−35
Festo P.BE−SPC200−WIN−PISA−CD−EN en 0901d
The factors are standarized to 1.0 by the SPC200. By increas
ing the factors (u1), you can correspondingly increase the
parameters; by decreasing the factors (t1), you can corre
spondingly decrease the parameters.

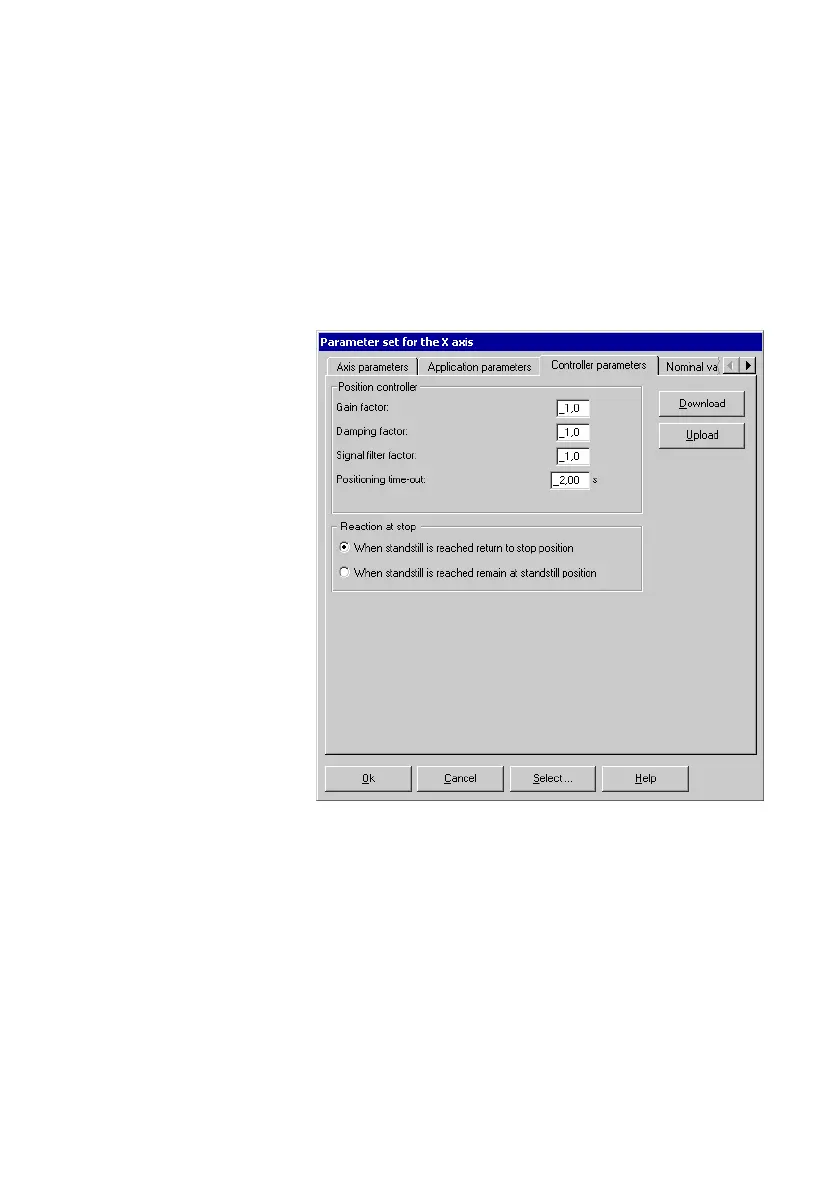

Fig.4/14: Configuring X axis, controller parameters
(example linear drive)
Set the controller parameters on the Controller parameters"
tab of the Parameter set for the .. −axis" dialogue window.
