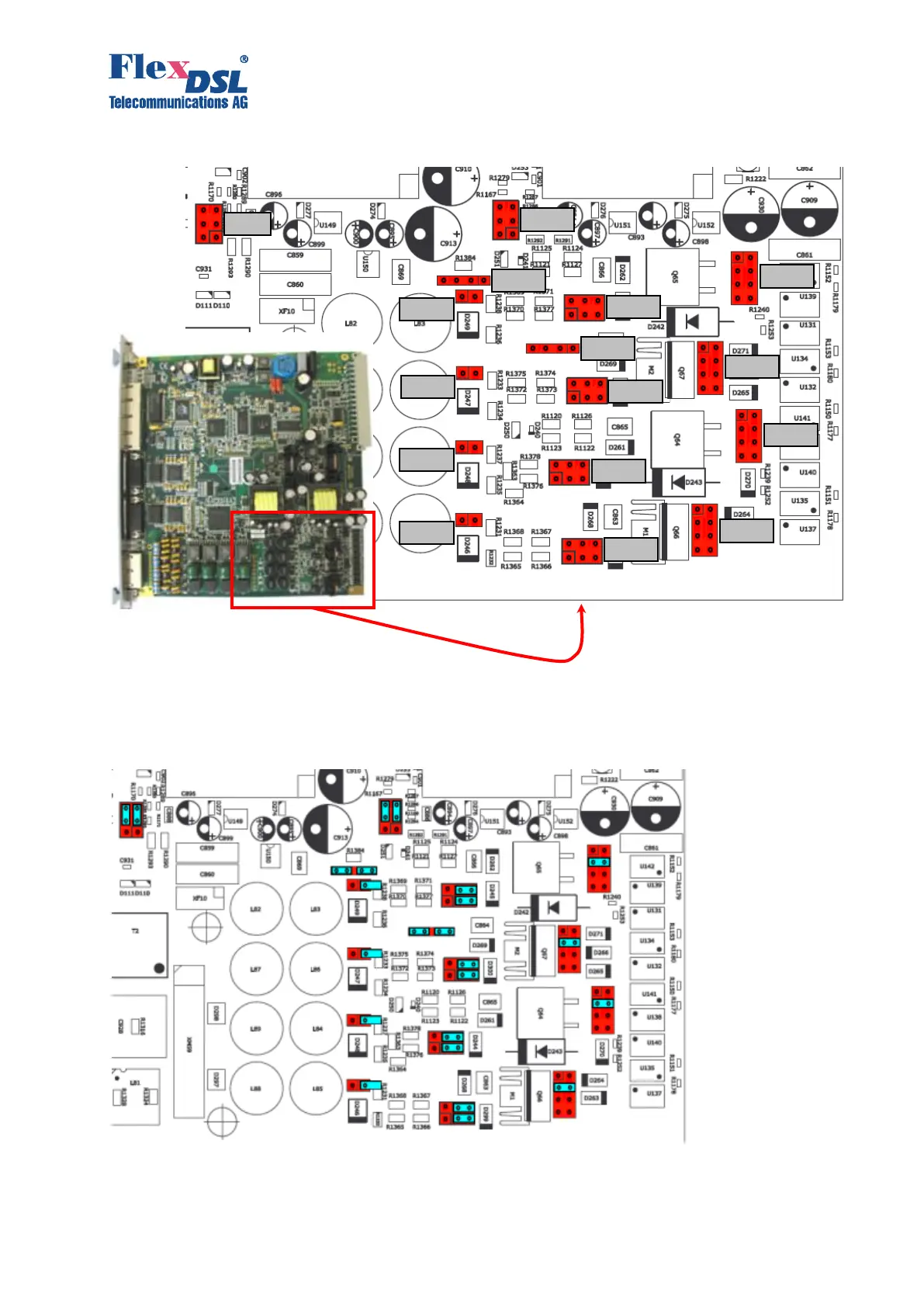

Figure 3.1 Remote power jumper location
In the following two figures two main applications are showed for clarifying the description about
remote power modes.
Figure 3.2 Example 120Volts, 60mA
