Infratec™ 1241 Grain Analyzer
Service Manual 1001 5015 / Rev. 4 5:3

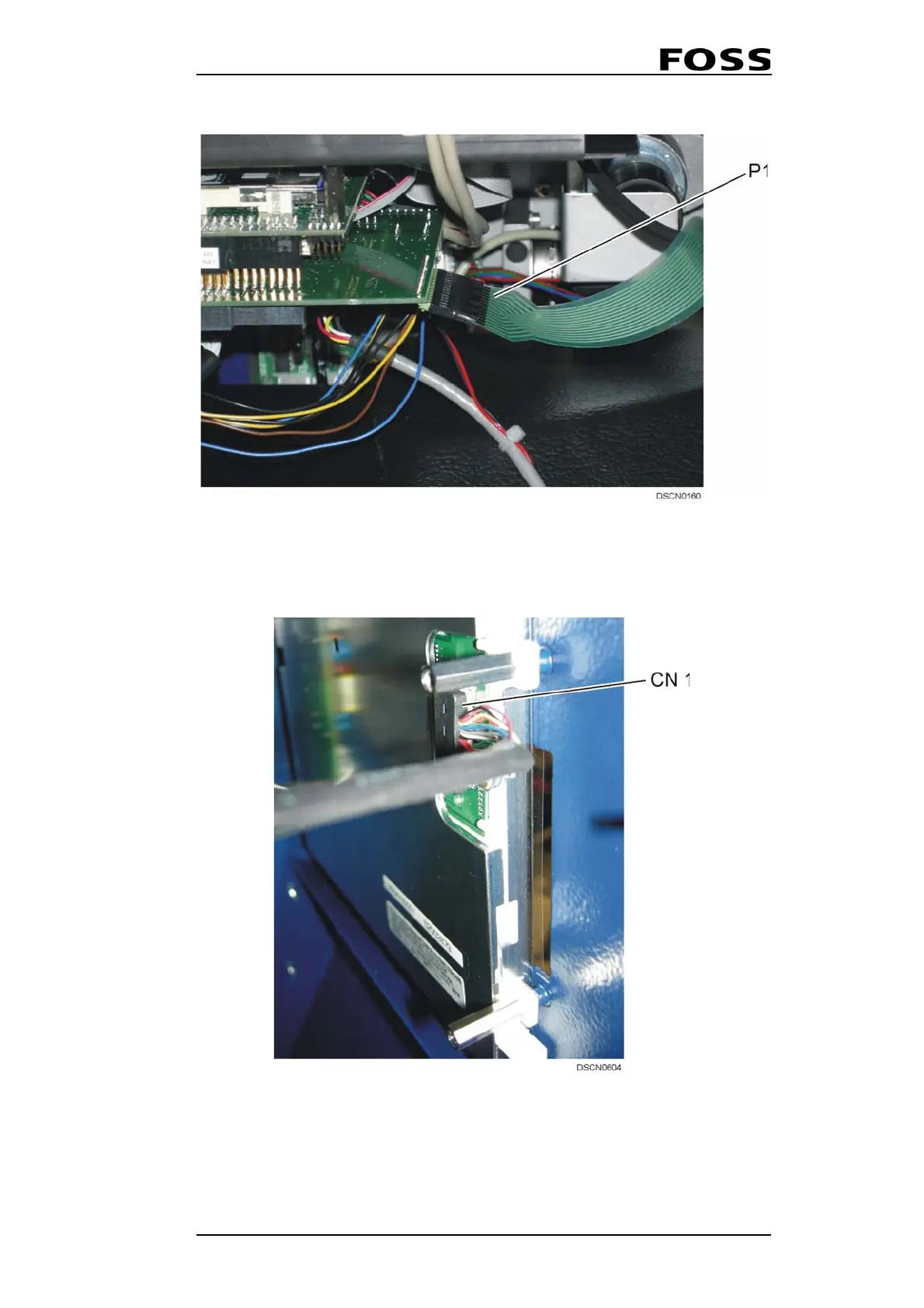

5. Disconnect the P1 cable from the DSP Board.
Fig. 5:2 DSP Board
6. Disconnect the display cable from CN1 on the LCD Display.
Fig. 5:3 LCD Display
P1 Keypad
CN1 Processor Board
