Infratec™ 1241 Grain Analyzer
5:4 Service Manual 1001 5015 / Rev. 4
7. Disconnect the JP1 and JP2 cables from the Display Interconnection Board.

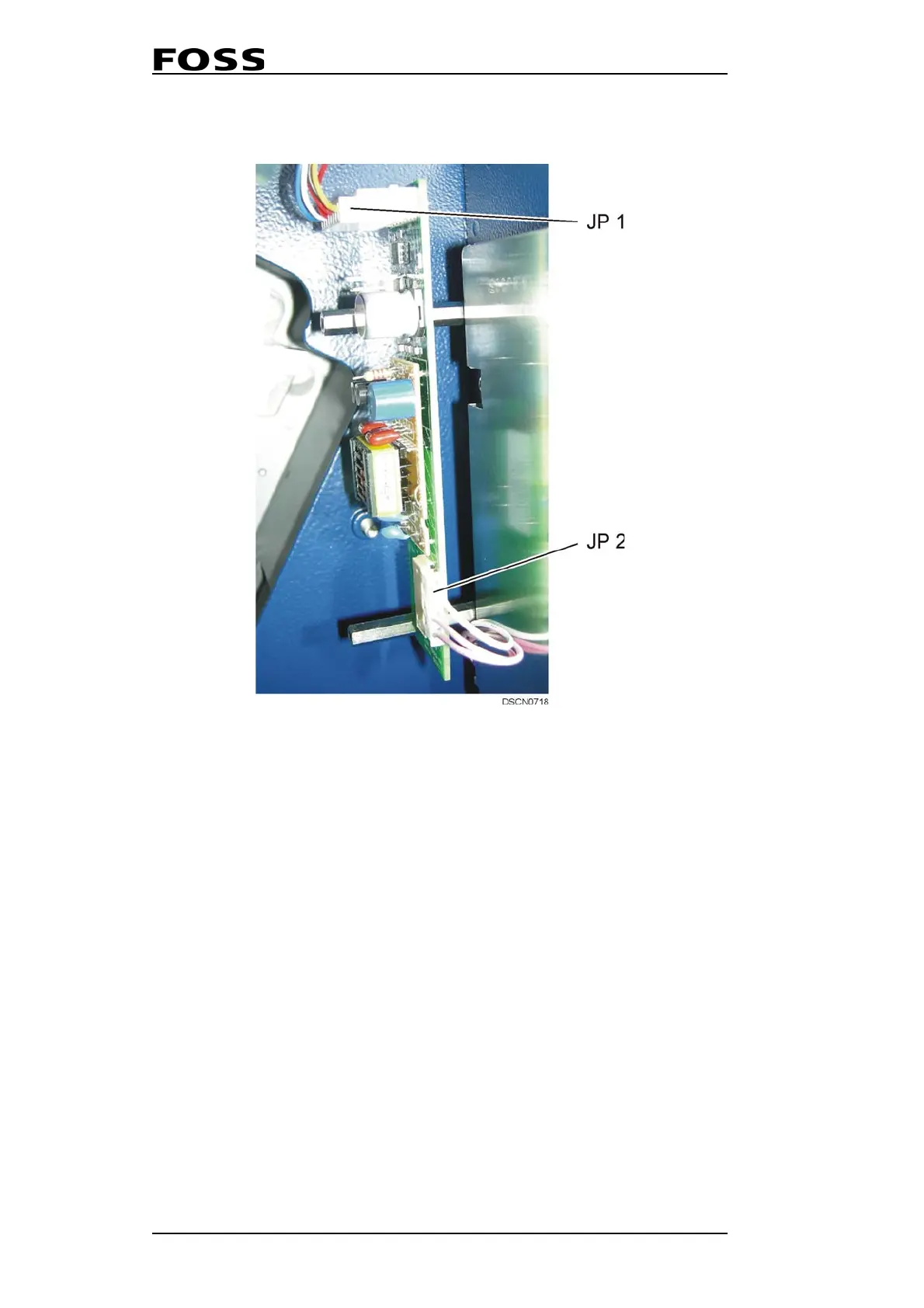

Fig. 5:4 Inverter Interface Board
8. Remove the two distance bolts together with the two nylon washers and
carefully lift away the Display Interconnection Board.
JP1 I2C Bus JP2 LCD Display
