Foss Infratec 1241 Service Manual

Infratec™ 1241 Grain Analyzer
Service Manual 1001 5015 / Rev. 4 5:59
7. Remove the two Philips screws and lift out the motor.

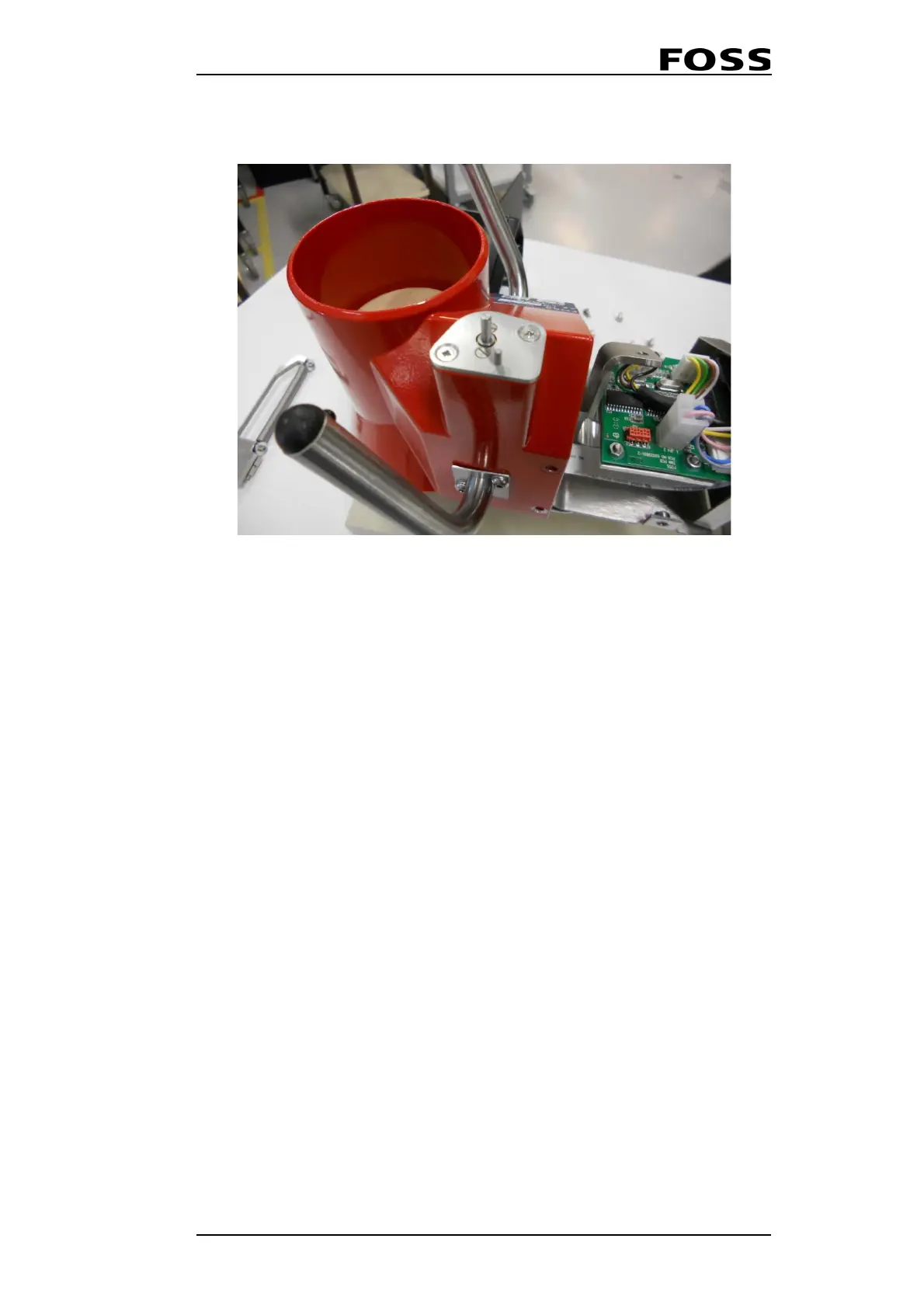

Fig. 5:59
8. Move the motor bracket to the new motor. The orientation is not important.
9. Fix the new motor assembly. Make sure the cable falls behind the interconnect
PCB.
10. Put the wiper arm back and fix it with the grub screw. The orientation is not
important.
11. Connect the TWM module to the Infratec and start the instrument.
12. During start up the wiper will move to the physical stop and calibrate that
encoder value to represent the home position.
13. Perform a TWM balance calibration, see 5.7.2 TWM Balance Calibration on
page 5:74.
