5. Fasten the guiding bracket on the right side of the Test Weight Module. Use the
holes market with arrows in
Fig. 3:12 below and Fig. 3:13 on page 3:7. Attach
bracket with two short screws using a 3 mm allen wrench.

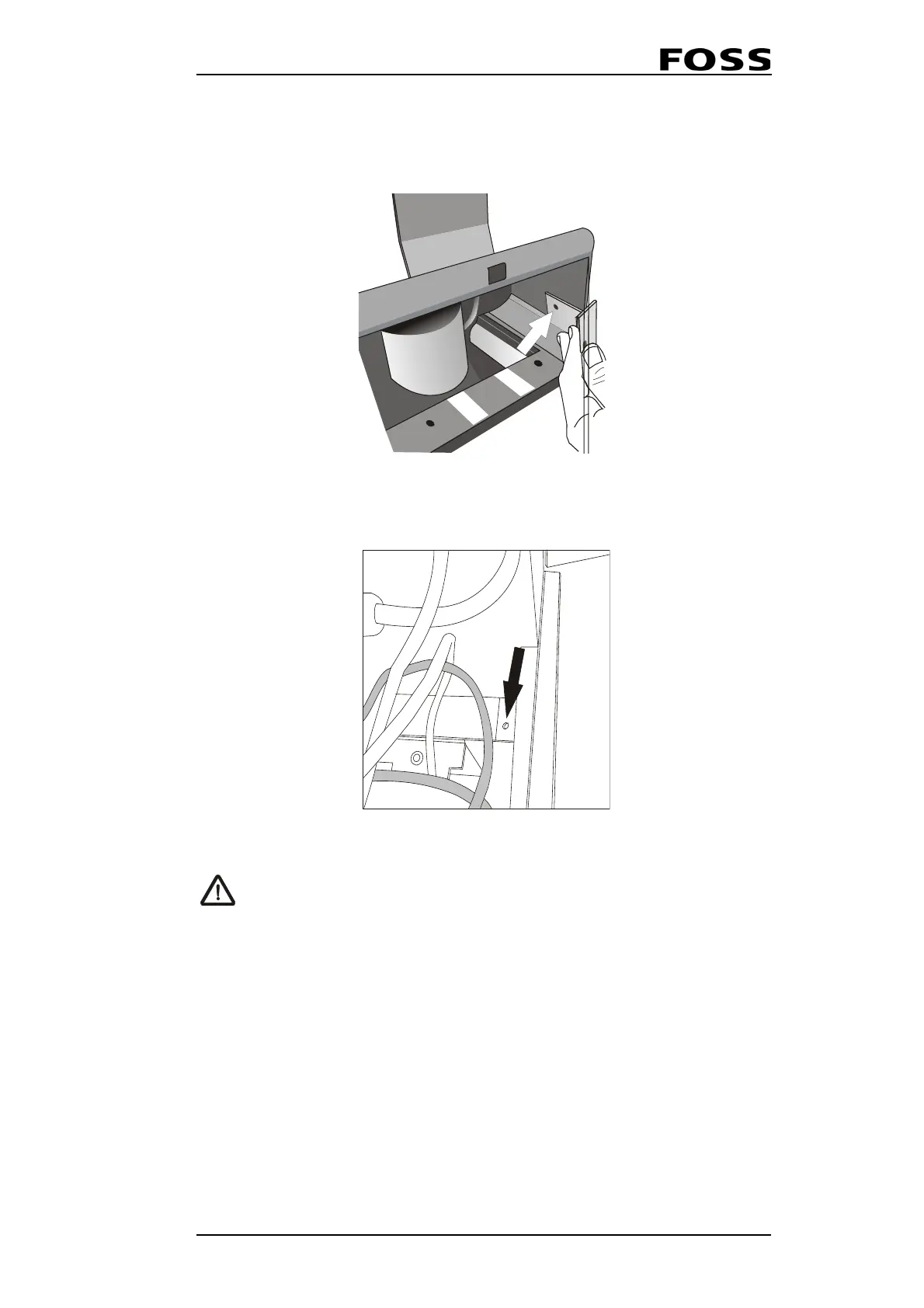

Fig. 3:12 Guiding bracket hole
Fig. 3:13 Guiding bracket hole
Caution
Steps 6-8 are extremly important for the instrument to be EMC
approved.
6. To earth the TWM at least one of the holes marked with arrows in Fig. 3:14
below, has to be scraped. Use an 8 mm plane countersink.
7. Plane countersink the corresponding hole on the TWM.
