Infratec™ 1241 Grain Analyzer
3:8 Service Manual 1001 5015 / Rev. 4
8. Position the cover plate assembly in the collection drawer opening of the
Infratec, see

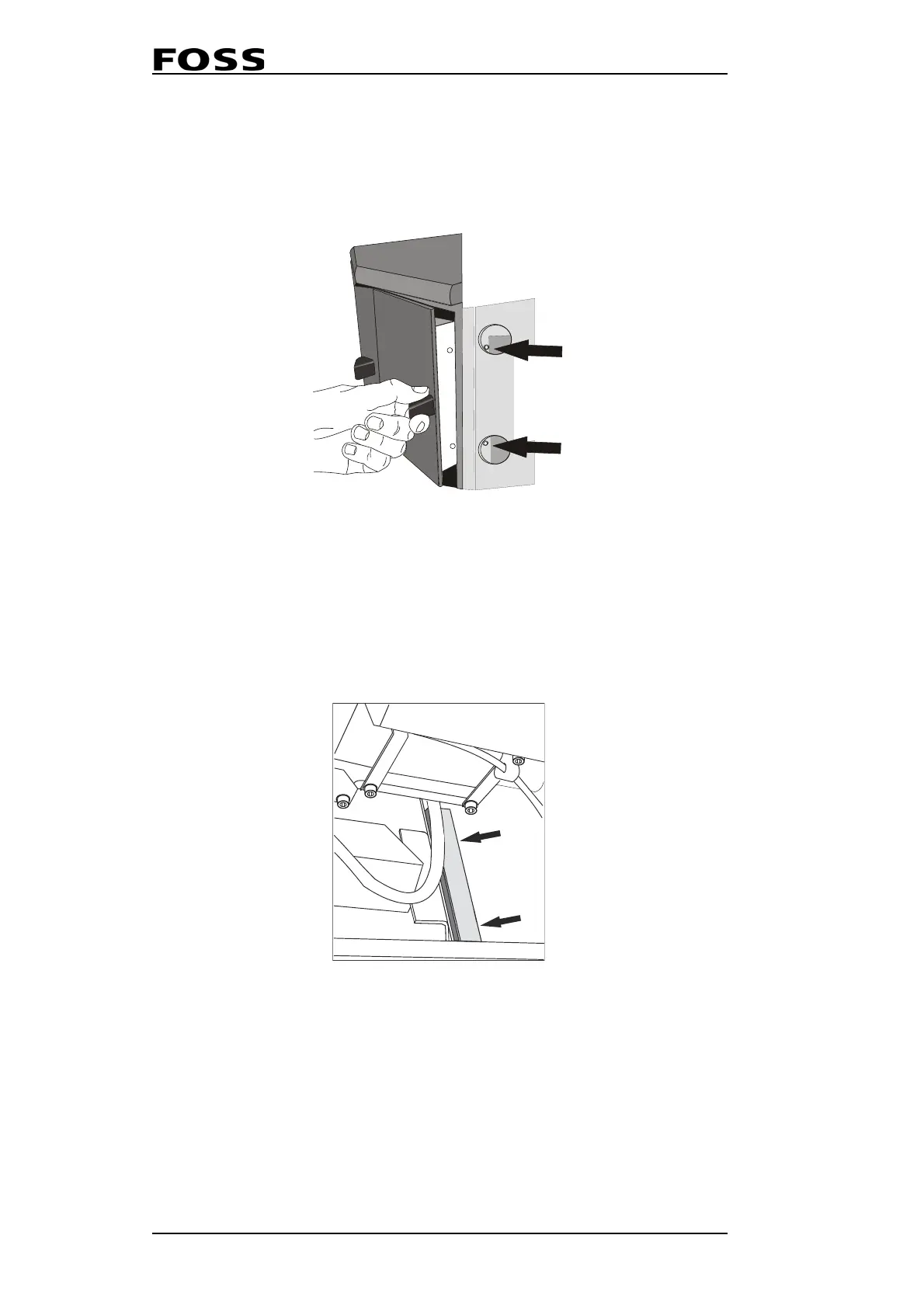

Fig. 3:14 below. Fasten the cover plate assembly with two long
screws using a 3 mm allen wrench.
Note: Fasten a toothed plate connector in the plane counter-
sinked hole.
Fig. 3:14 Scrape at least one of these holes
9. Close the right-hand door and lower the hopper section to its fully closed
position. Tilt the complete instrument back to upright position.
10. Mount the block ment to hold the Front Transport Securing device behind the
TWM. Dry off the space behind the TWM with alcohol to make the self-
adhering tape adhere better, see
Fig. 3:15 below.
Fig. 3:15 Self-adhering tape
