Infratec™ 1241 Grain Analyzer
Service Manual 1001 5015 / Rev. 4 3:13

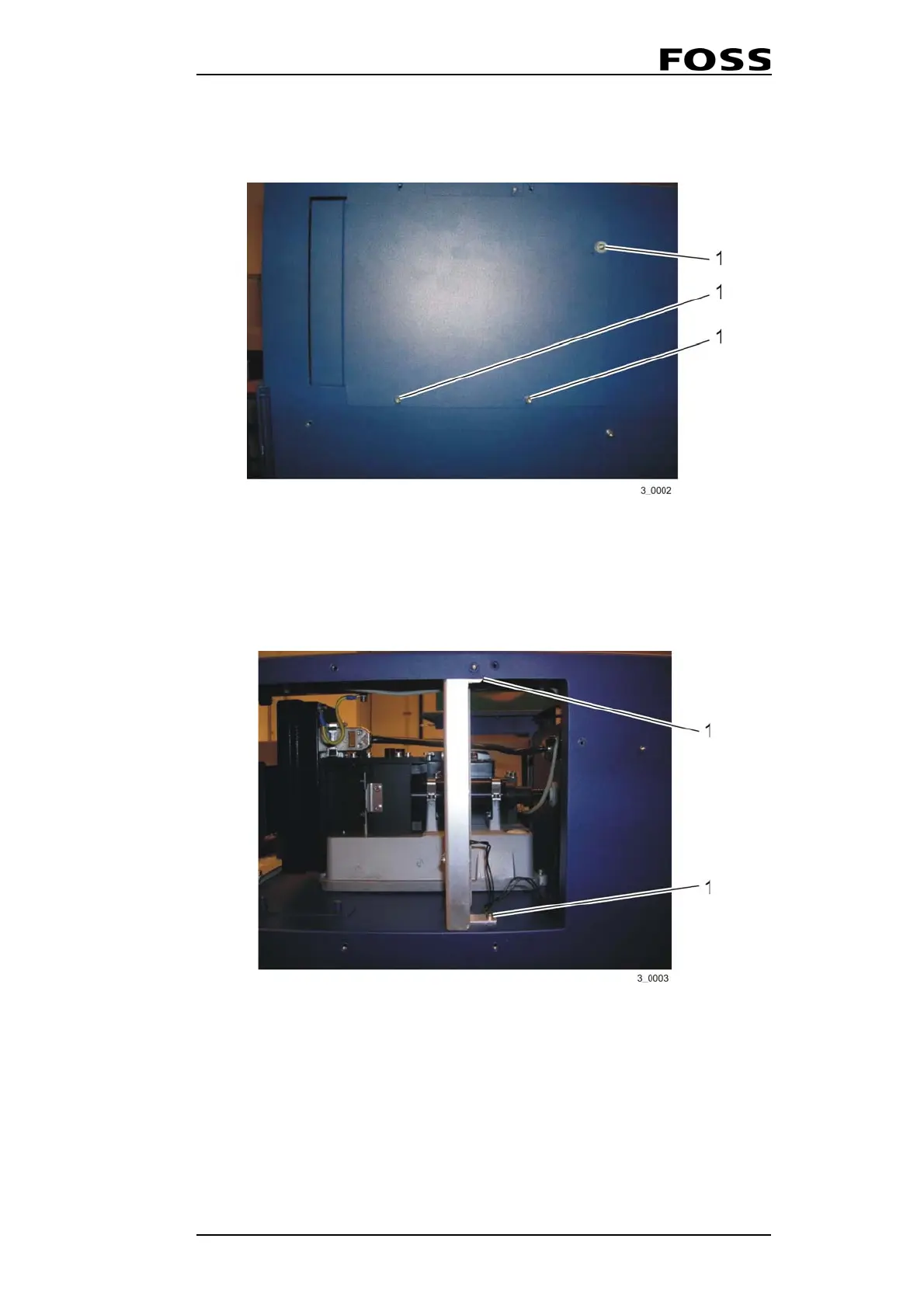

6. Remove the bottom plate by removing the three screws 1.
Keep the screws because they are needed later.
Fig. 3:23
7. Disconnect the drawer sensor and remove the sensor plate by removing the two
screws 1.
Fig. 3:24
