Infratec™ 1241 Grain Analyzer
3:14 Service Manual 1001 5015 / Rev. 4

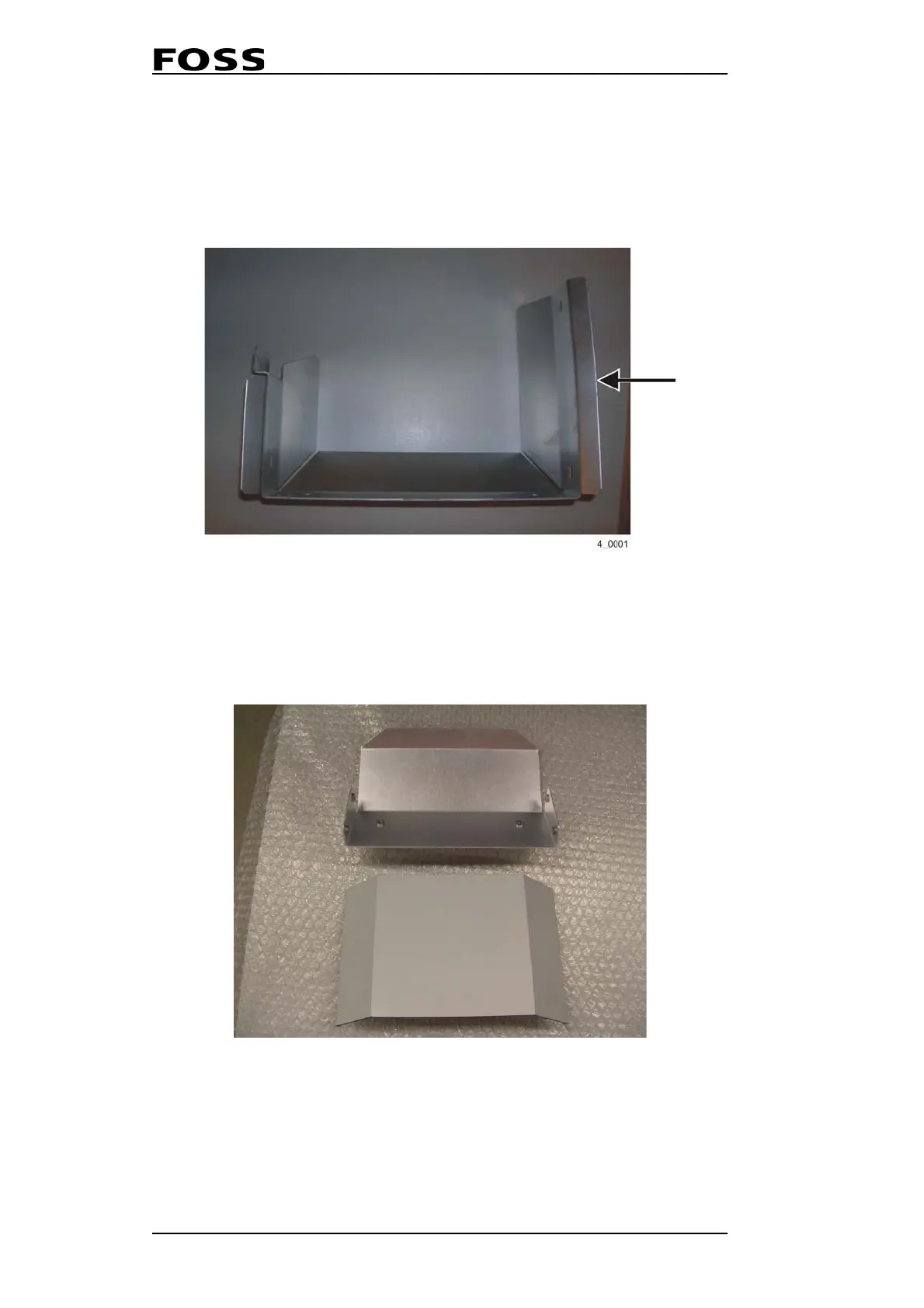

8. Prepare the grain deflector (p/n 60039237) by putting the adhesive (p/n
10014399) on the outside of the right part of the deflector (see arrow below). It
is used to hold it in place before it is fasten by the screws later in the assembly.
9. Mount the grain deflector at the front by using four screws (p/n 55320017).
Just fix it don't fasten it yet.
Fig. 3:25
10. Put together the front cover (p/n 60034842) and cover bracket (p/n 60039398)
by using the four screws (p/n 15320098).
Fig. 3:26
