Infratec™ 1241 Grain Analyzer
Service Manual 1001 5015 / Rev. 4 3:19

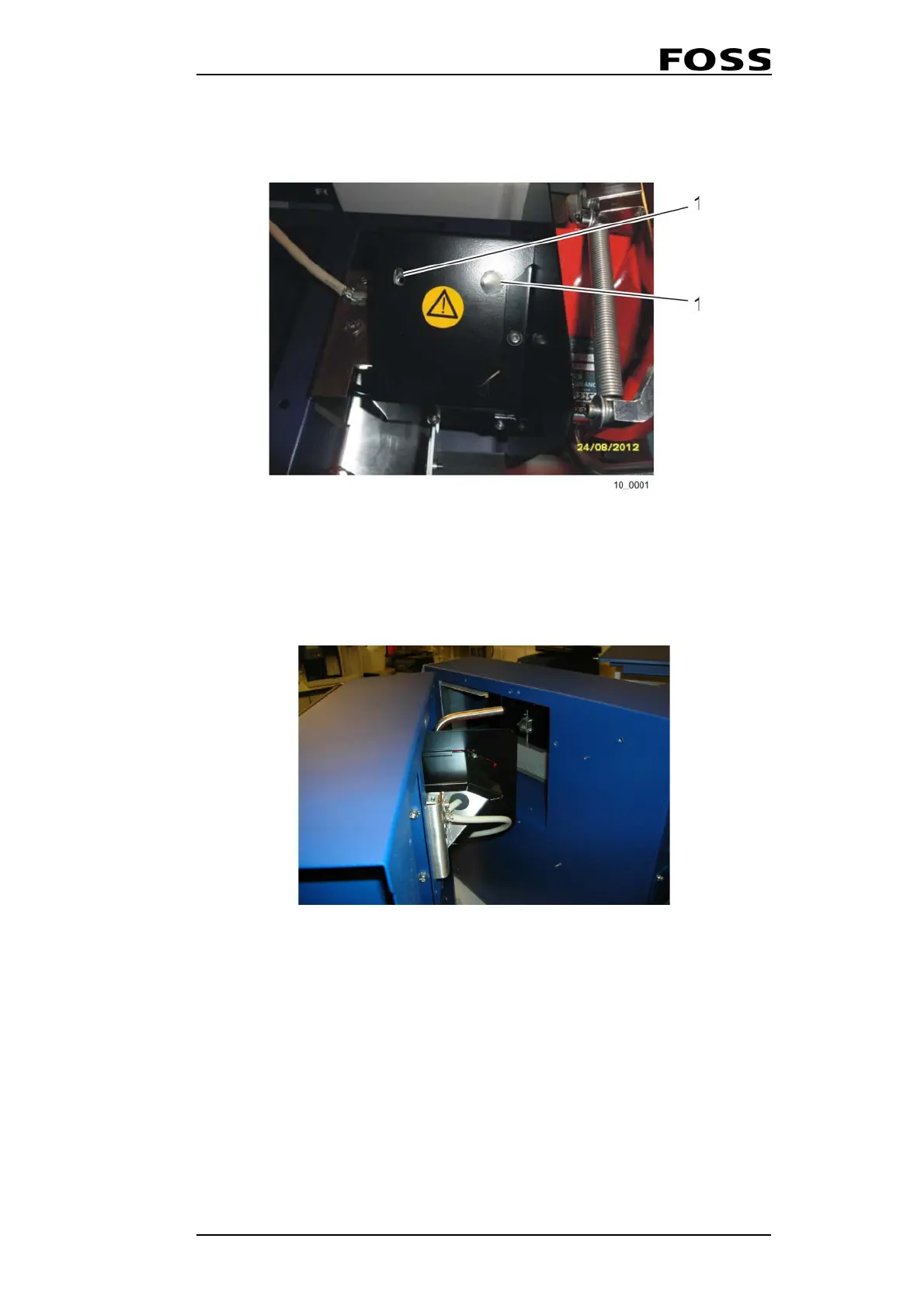

19. Use the enclosed labels 1 (p/n 10009083) to cover the two holes from the letter
screws.
Fig. 3:35
20. Take the Test Weight Unit and connect it to the Infratec. Place the balance
behind the deflector so that the level sensors don't touch the deflector.
Fig. 3:36
