FPT F32 MNS - General Specifications

SECTION 4 - MECHANICAL OVERHAUL
3
F32 SERIES
Print P2D32F005 E Base - April 2009

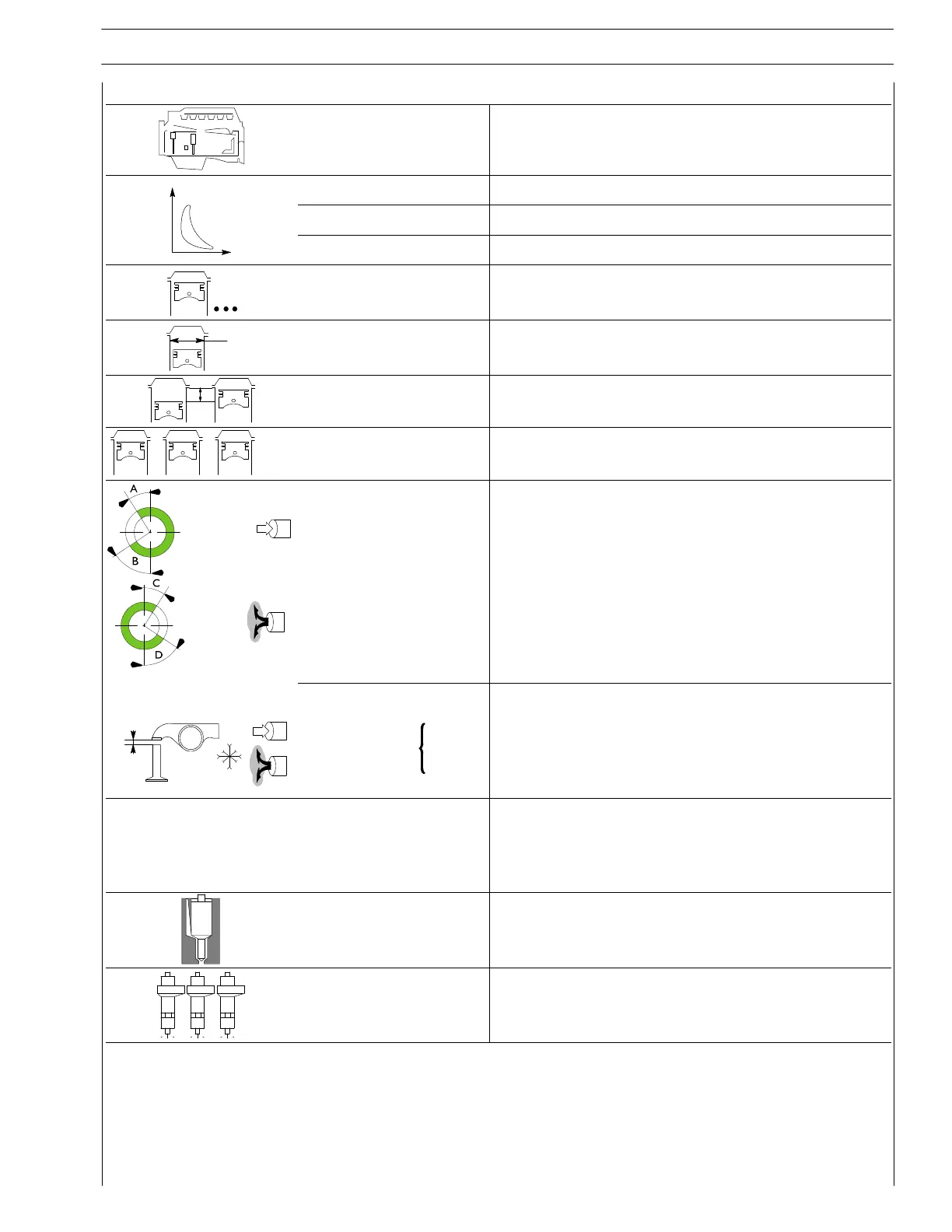

GENERAL SPECIFICATIONS
Type 4CYLINDERS
Cycle Diesel 4 strokes
Power See the specifications reported in Section 3
Injection Direct
Number of cylinders 4

Bore mm 99
Stroke mm 104
+++..=
Total displacement cm
3
3200
TIMING
start before T.D.C. A
end after B.D.C. B
start before B.D.C. D
end after T.D.C. C
1930’
3730’
6130’
2130’
X
Checking timing
mm
X
mm
0.25 ± 0.05
0.50 ± 0.05
FUEL FEED
Injection
Type: Bosch
VE 4/12F
Nozzle type BOSCH DSLA138PV 33
Injection sequence 1-3-4-2
